BL-00300-R40D - Datasheet

MBA

Category Information

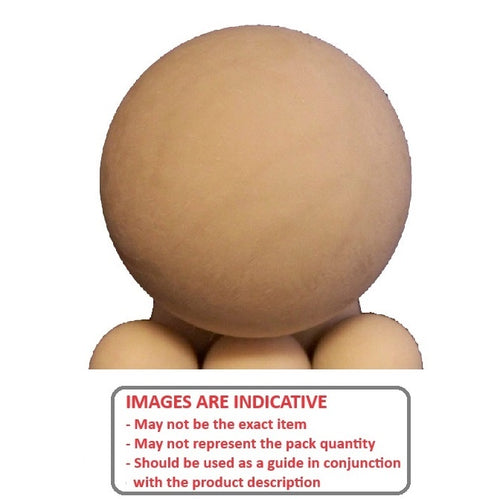

Balls - Rubber - Santoprene 40D

Santoprene 40D Rubber Balls. A high performance thermoplastic created by cross linking EPDM rubber with Polypropylene. As an elastomer plastic it is flexible, light weight, and has very good abrasion resistance. It also has good resistance to many acids, bases and aqueous solutions.

  • Rubber ball grades are not the same as those for precision balls
  • It holds up well in both extreme hot and cold environments which can make it preferred over rubber. Common uses include; grips, knobs, handles, gaskets, and ball check valves.
  • Specific Gravity .95 g/cc. Hardness, Shore 40D
  • Tensile Strength 3000 psi. Melting Point 410 F
  • Rohs Compliant. Not FDA compliant.
  • This grade is slightly harder than the 87A grade. Colour usually red but some sizes are beige.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Diameter (D) : 3.00 mm +/- 0.051
    (Equiv. 0.118 in.)
  • Material Santoprene Rubber
  • Precision Grade II
  • Hardness Shore 40D
  • Properties Excellent for liquid level float applications.
  • Colour Beige
  • Specific Gravity 0.95
  • Material Santoprene Rubber
Country of Origin: US
