PLIT-040-095C-10-G-C-N - Datasheet

MBA

Category Information

Plungers - Indexing - Grip - Steel - With Nut

With Nut Steel Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

    • Thread (B) : 3/8-16 UNC (9.53mm)
    • Thread Length (F) 20.0 mm
      (Equiv. 0.787 in.)
    • Initial End Force 0.4 N
    • Final End Force 0.8 N
    • Tip Diameter (A) 4.0 mm
    • Tip Length (E) 6.0 mm
    • H 14.3
    • Handle Length (G) 25.0 mm
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP694
      • KBP-694
      View full details

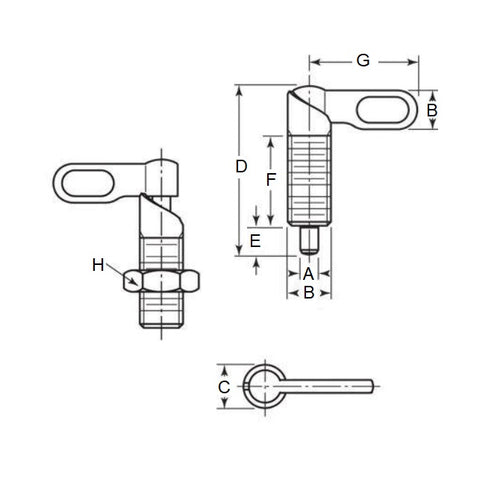

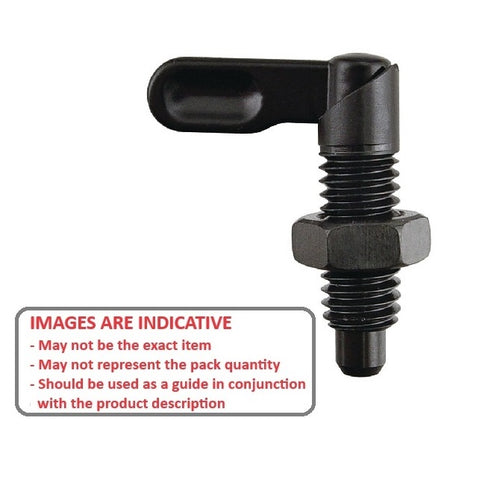

      PLIT-040-095C-10-G-C-NDiagramPLIT-040-095C-10-G-C-NImage
