RP039-0349-420 - Datasheet
Brighton Best
Category Information

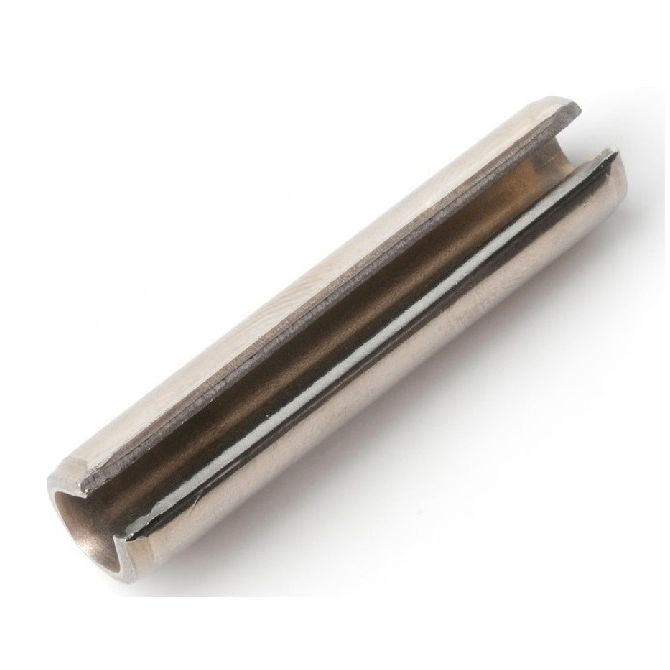

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
3.97
mm
(Equiv. 0.156 in.) - Length (L)
34.90
mm
(Equiv. 1.374 in.) - Free Diameter
4.37
mm
(Equiv. 0.172 in.) - Thickness (S) 0.81 mm
- Chamfer Length (cL) 0.25-1.22 mm
- Chamfer Diameter (cD) 3.8 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 803099
- 92383A718
- NoCor SPS420-156-1374-420SS
- NoCor SPSP-156-1374-420SS
- SPSP1561374420SS
- SPS4201561374420SS
- A9Y350544
- A9Y35-0544
