ECL-0030-0039-C-KR - Datasheet
MBA
Category Information
Retaining Rings - E-Clips - KlipringKlipring E-Clips Retaining Rings. Also known as Poodle Rings - Imperial - N1504 / NKP
- An expanded range may be available on special order. Please enquire.

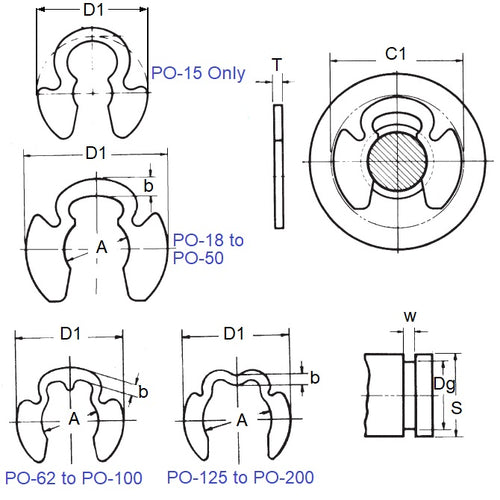

Product Data
- Minimum Rec. Shaft Dia (S)
:
3.97
mm
+ 1.26 / - 0.00
(Equiv. 0.156 in.) - Groove Dia. (Dg)
3.01
mm
+/- 0.102
(Equiv. 0.119 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.052
(Equiv. 0.035 in.) - Clip OD Loose (D1) 8.13 mm
- Groove Width (W) 0.99 mm
- Maximum Rec. Shaft Dia (S) 5.23
- Clip OD in groove (C1) 9.91 mm
- Loose Clip ID (A) 2.79 mm
- Min. Extension (n) 0.91
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5304-015
- 98420A119
- NoCor PO-015
- Rotor Clip PO-015
- PO015
- 5304015
