CS-0397-0254-04-S4-C - Datasheet
MBA
Category Information

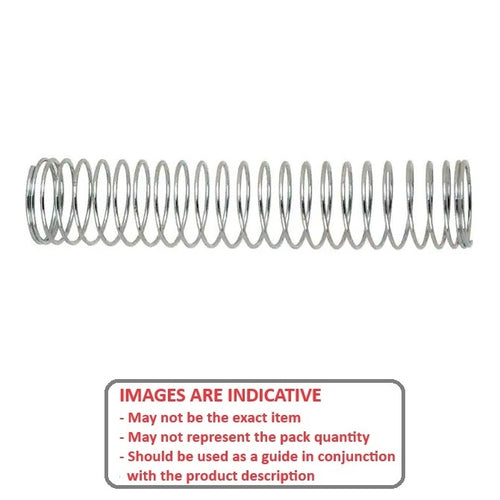

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
3.97
mm
+/- 0.127
(Equiv. 0.156 in.) - Free Length (L0)
25.4
mm
+/- 0.64
(Equiv. 1 in.) - Wire Diameter (d)
0.36
mm
+/- 0.015
(Equiv. 0.014 in.) - Rate (P/f) 0.2 N/mm
- Solid Height (Sh) 6.100 mm
- Approx. ID 3.3 mm
- End Type Closed
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- ASI JWC04-SS (G304 Stainless)
- JWC04SS (G304 Stainless)
