PSP-039-025H-C - Datasheet
MBA
Category Information

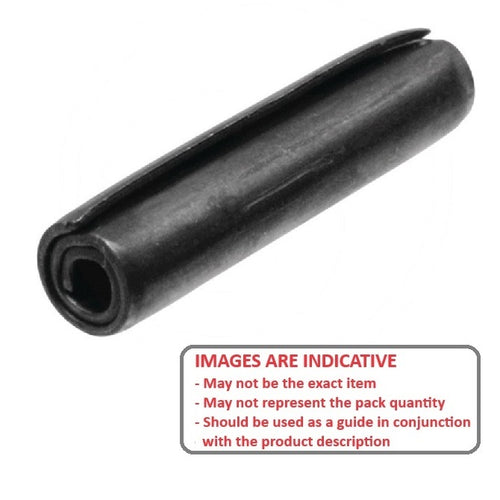

Pins - Coiled - Steel - Heavy DutyHeavy Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8748 Heavy Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
3.97
mm
(Equiv. 0.156 in.) - Length
25.40
mm
+/- 0.50
(Equiv. 1 in.) - Drill Size
3.97 - 4.06
mm
(Equiv. 0.156 in.) - Loose Diameter 4.09 - 4.27 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPC-156-1000H
- SPC1561000H
