KW-039-159-S3 - Datasheet

ExaktKey

Category Information

Keys - Woodruff - 303 Stainless Steel

303 Stainless Steel Woodruff Keys. This is the main category in this series

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thickness (S) : 3.97 mm +/- 0.025
    (Equiv. 0.156 in.)
  • Basis Diameter (D) 15.88 mm +/- 0.250
    (Equiv. 0.625 in.)
  • Approx. Height (H) 6.4 mm
    (Equiv. 0.252 in.)
  • Approx. Length (L) 15.56 mm
  • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • WOODRUFF 505-SS
  • NoCor WKS-006
  • WKS006
  • 505SS
  • A9X490520
  • A9X49-0520
View full details

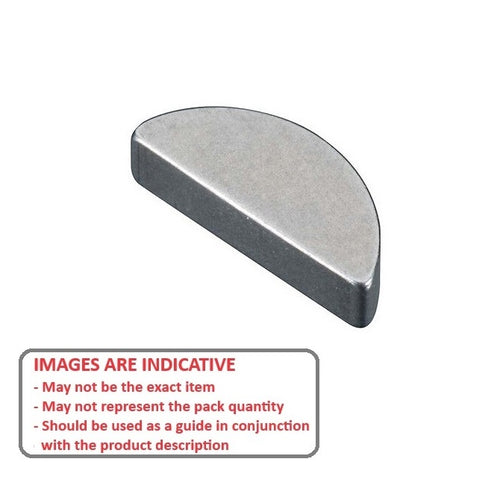

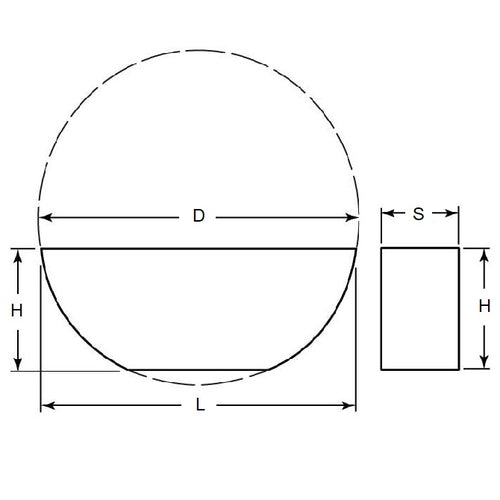

KW-039-159-S3DiagramKW-039-159-S3Image
