HPE-040-08-012-C - Datasheet
MBA
Category Information

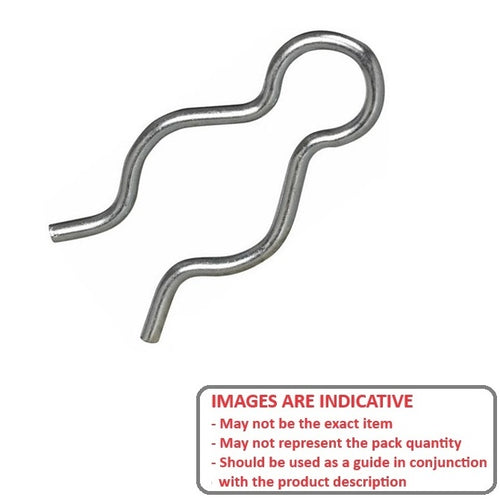

Pins - Hitch ExternalHitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.
Product Data
- Recommended Groove Diameter
:
3.97
mm
(Equiv. 0.156 in.) - Rec. Groove Width
1.2
mm

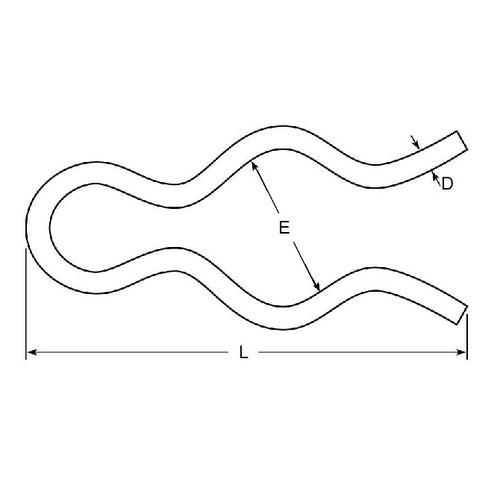

(Equiv. 0.047 in.) - Wire Thickness (D)
0.8
mm
(Equiv. 0.031 in.) - Inside Eye Diameter (E) 3.2 mm
- Length (L) 11.9 mm
- Material Spring Wire, Oil-Tempered
Product Compliance and Data
Additional Resources
Cross References
- Geri Systems GERI-INS-01-U
- SPB HPE-0397-081X0119
- PI PI-0023291
- PI0023291
- HPE0397081X0119
- A9Q34-X1
- A9Q34X1
- GERIINS01U
