SFWR155A-ZZS-MC34-GR7-R-L23 - Datasheet
Myonic
Category Information
Bearings - Single Row Ball - Flanged - High Precision - Extended InnerExtended Inner High Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges - Abec 5 and Abec 7. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
- True high precision bearings are not recommended for skates or fishing reels.
- High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
- If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).
Product Data

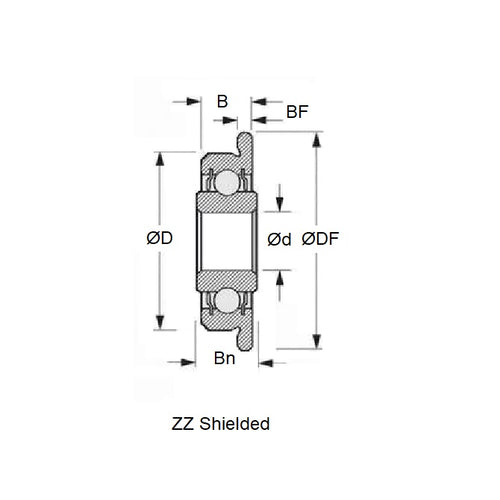

- ID (d)
:
3.969
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.) - OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.) - Width (B)
3.175
mm
+ 0.000 / - 0.125
(Equiv. 0.125 in.) - Inner Ring Width (Bn) 3.969 mm
- Flange Diameter (DF) 9.119 mm
- Flange Width (BF) 0.914 mm
- Precision Grade Abec 7
- Closure Type ZZS
- Bearing Type Radial Flanged with Extended Inner
- Lubricant Windsorlube L245X - L23 Oil
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name L23 Windsorlube L245X
- Basic Part FWR155A
- Limiting Speed 63000
- Cage Type Ribbon
- Static Load Rating KGf 15
- Dynamic Load Rating KGf 37
- Radii 0.10 mm
- Inner Shoulder (UI) 5.53mm
- Outer Shoulder (UO) 7.30 mm
- Number of Balls 10
- Clearance MC34 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 170 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- GRW FE3967-2Z-P4
- GRW SFE3967-2Z-P4
- FWR155A
- SFWR155AZZSRGR7MC34L23
- SFE39672ZP4
- SFWR155AZZSMC3GR7L23
- ULKUZ5010X-A7P-L23
- ULKUZ-5010X-48-A7P-6/15-L23
- ULKUZ5010XA7P
- ULKUZ5010XA7PL23
- ULKUZ5010X48A7P6/15L23
- FWR155A Basic Size Ref
