VD-5RS - Datasheet

MBA

Category Information

Plungers - Ball Buttons

Ball Buttons Plungers. Also known as striker bushings or ball plunger detents. Use with ball or bolt spring plungers for a hard wearing contact area.

  • Burnished ground hardened steel.

Product Data

  • Suitable Ball Diameter (d) : 3.962 mm
    (Equiv. 0.156 in.)
  • Diameter (D) 6.754 mm
    (Equiv. 0.266 in.)
  • Length (L) 7.938 mm
    (Equiv. 0.313 in.)
  • Hole Diameter (d1) 3.531
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 33545A24
    View full details

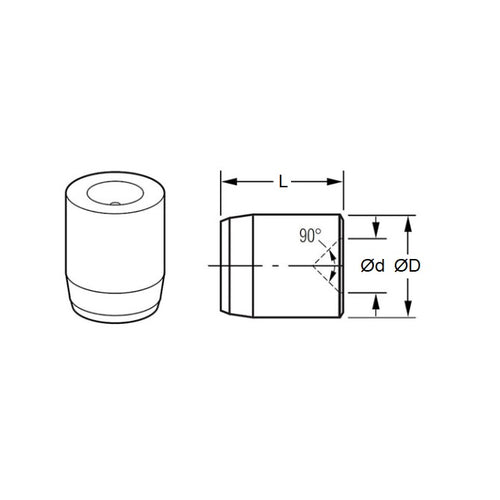

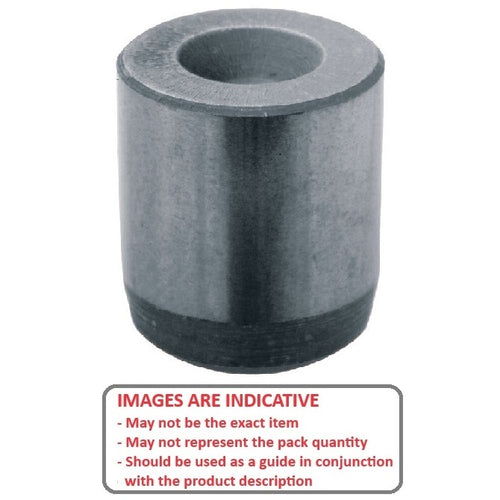

    VD-5RSDiagramVD-5RSImage
