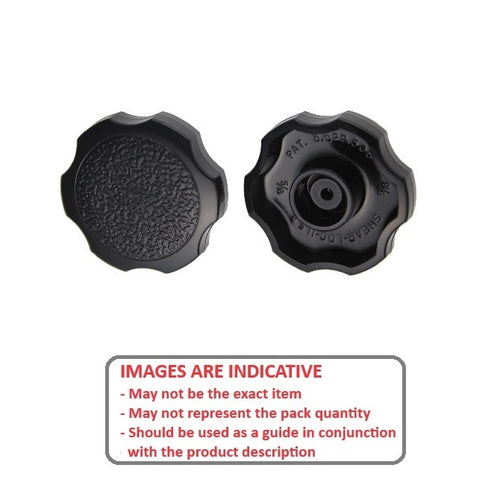

KM095-038-ROS-B - Datasheet
MBA
Category Information
Knobs - Thumb - For Cap ScrewsFor Cap Screws Thumb Knobs. Four Types and four colours to fit onto Socket Head Cap Screws.
- An expanded range may be available on special order. Please enquire.
- To fit Socket Head Cap Screws (Order Separately)
- Choice of 4 Colours.
- Choice of 4 styles.
- Made From Acetal Resin.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Cap Screw Thread : 3/8 (9.53mm) - Use Own Screw

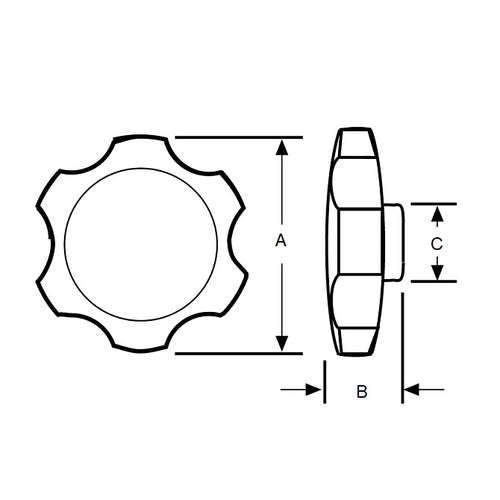

- Head Diameter (A)
38.10
mm
(Equiv. 1.5 in.) - Thickness (B)
11.9
mm
(Equiv. 0.469 in.) - Colour Black
- Style Rosette
- Hub Diameter (C) 17.859 mm
- Material Plastic
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94052A046-BLACK
- A 9M41-B8398909
- 94052A046BLACK
- A9M41-B8398909
- A9M41B8398909
