Miniature Bearings Australia

SR2-5A-D17-ZS-KC - Datasheet

MBA

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
Please contact us for a dental application list.

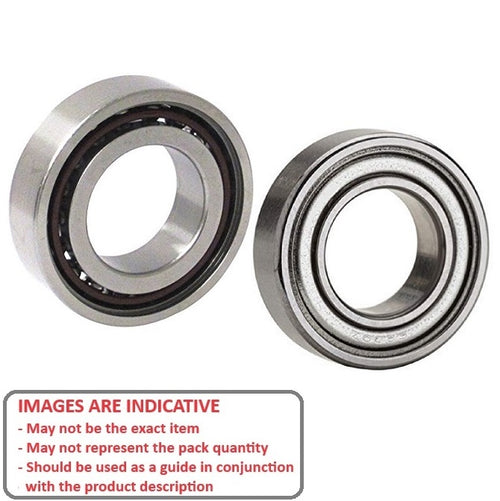

Single shielded Abec 7 precision special dental bearing with high speed phenolic retainer

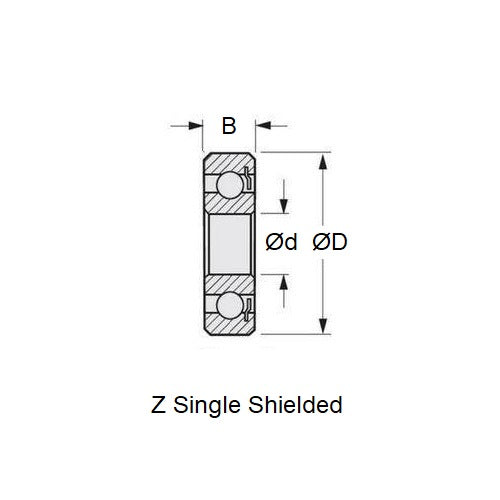

ID (d) : 3.175 mm _{+ 0.000 / - 0.004}
(Equiv. 0.125 in.)
O.D. (D) 7.938 mm _{+ 0.000 / - 0.005}
(Equiv. 0.313 in.)
Width (B) 3.571 mm _{+ 0.000 / - 0.040}
(Equiv. 0.141 in.)
Precision Grade Abec 7
Closure Type Z
Bearing Type R Dental Special
Lubricant Oil - Standard
Material Stainless Steel AISI 440C - High Speed Phenolic Cage - Dental Special

Country of Origin: CZ
