KF095F-076-CB - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

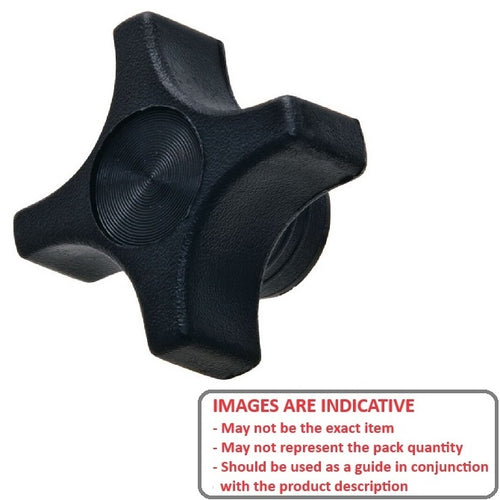

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

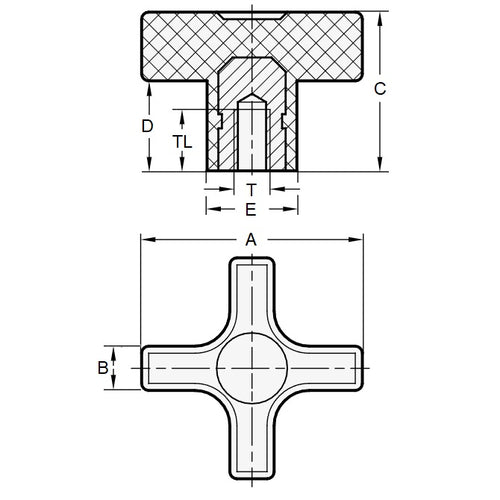

  • Thread Size : 3/8-24 UNF (9.53mm)
  • Head Diameter (A) 76.20 mm
  • Thread Length 15.9 mm
  • Colour Black
  • Hub Diameter (E) 22.23 mm
  • Hub Length (D) 14.29 mm
  • Knob Height (C) 31.75
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® DK-212
  • DK212
View full details
KF095F-076-CBDiagramKF095F-076-CBImage
