EZL-095F-143C-131-C - Datasheet
MBA
Category Information

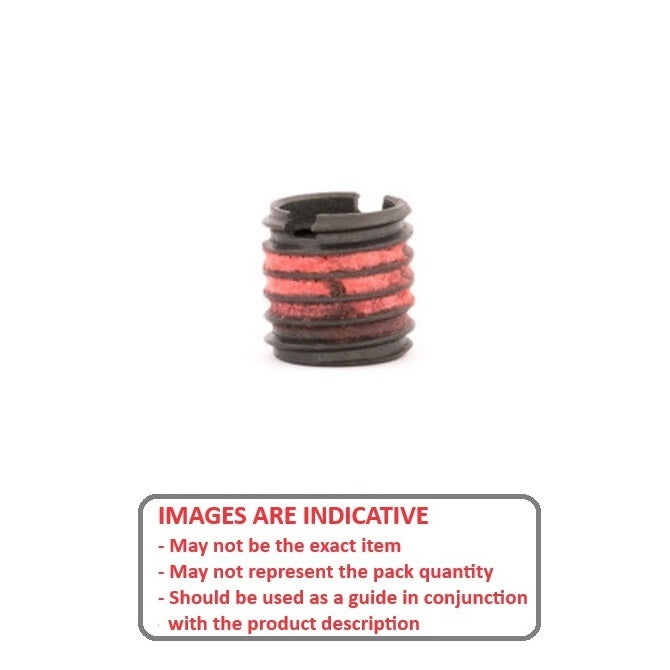

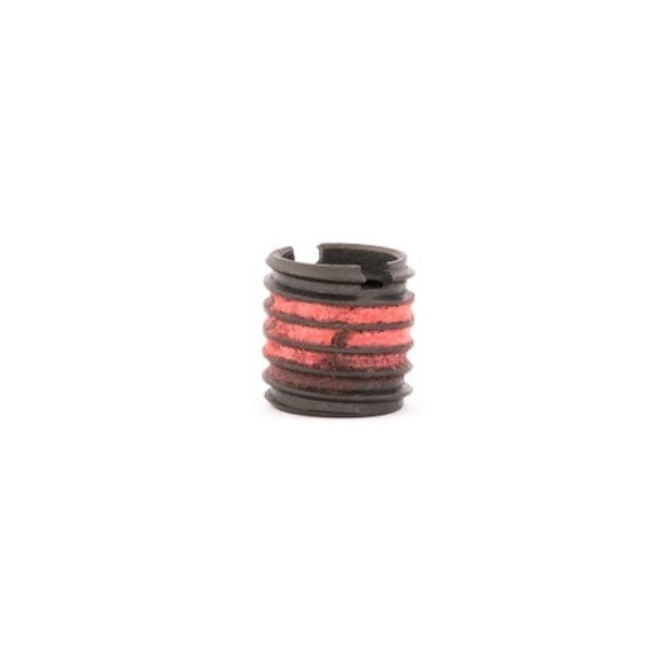

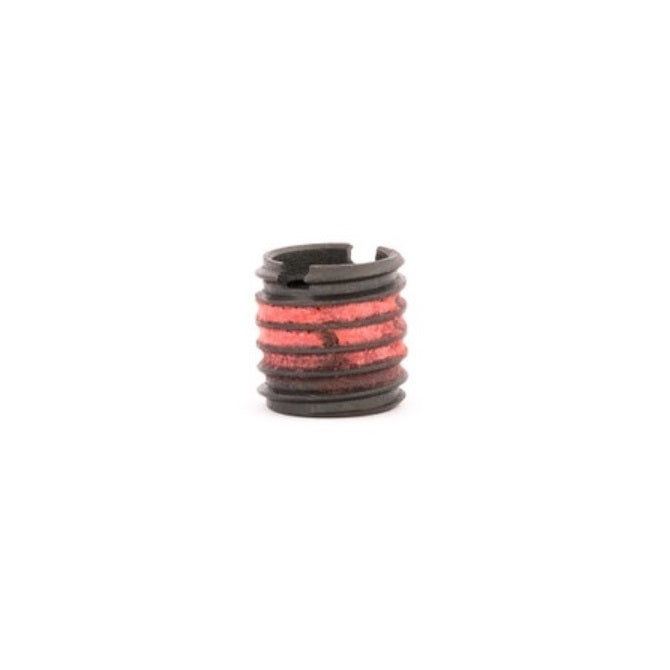

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data

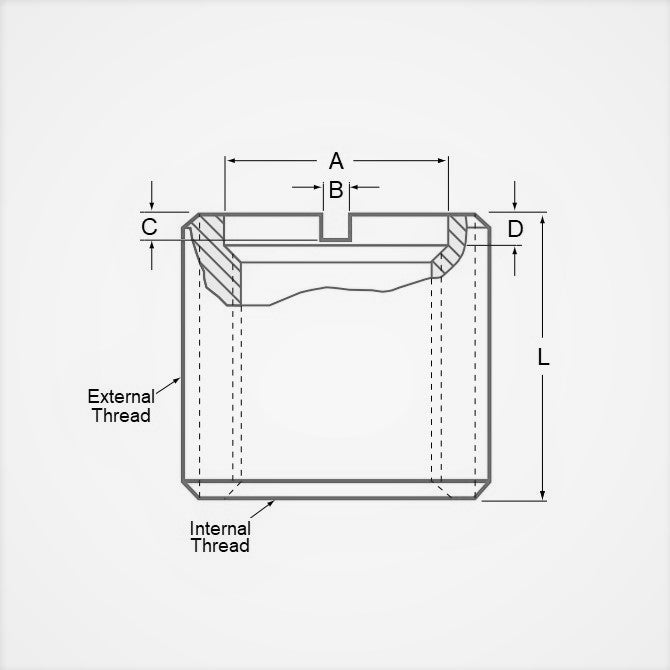

- Internal Thread : 3/8-24 UNF (9.53mm)
- Length
13.08
mm
(Equiv. 0.515 in.) - External Tap Size 14.288mm (9/16-12 UNC)
- Tapping Hole Size 12.30 mm
- Drive Tool 500-5
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 329-624
- 90248A082
- Small Parts EZ-3824
- 329624
- EZ3824
