KF095C-076-CH - Datasheet

MBA

Category Information

Knobs - Cross - Female - Through Hole

Through Hole Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads. Through Hole.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 76.20 mm
  • Thread Length 15.9 mm
  • Colour Black
  • Hub Diameter (E) 22.23 mm
  • Hub Length (D) 14.29 mm
  • Knob Height (C) 31.75
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® DK-218
  • DK218
View full details

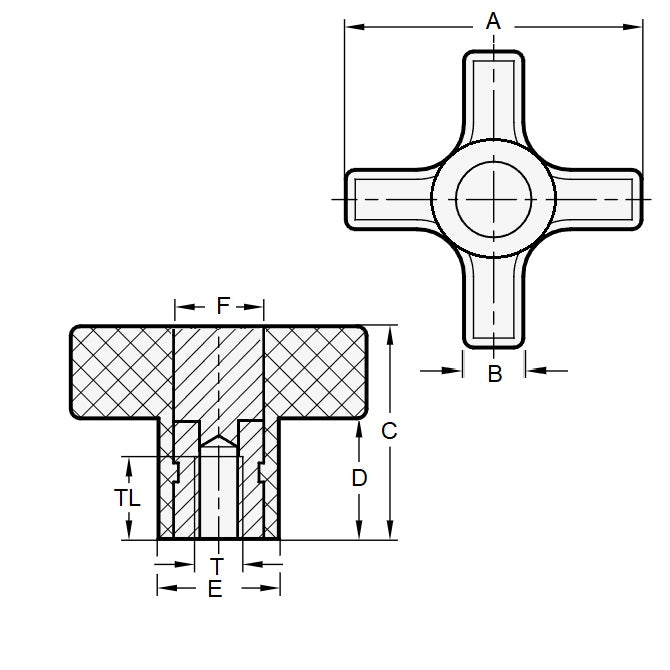

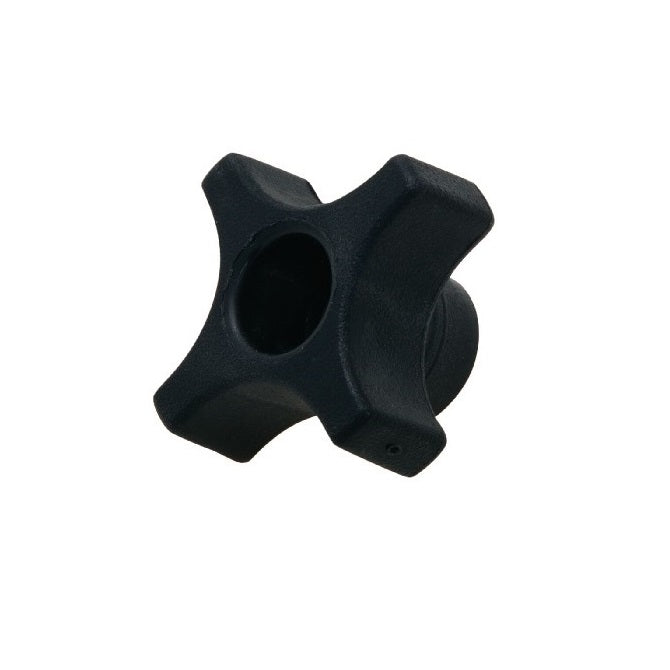

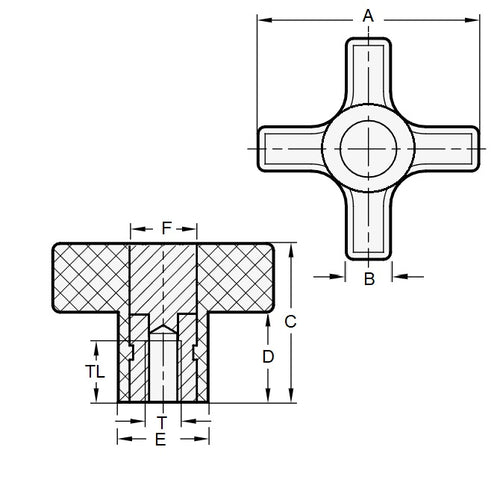

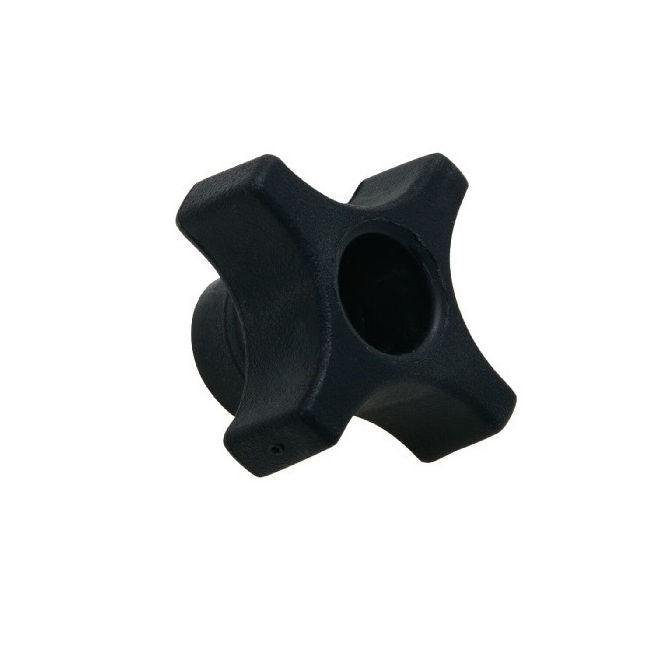

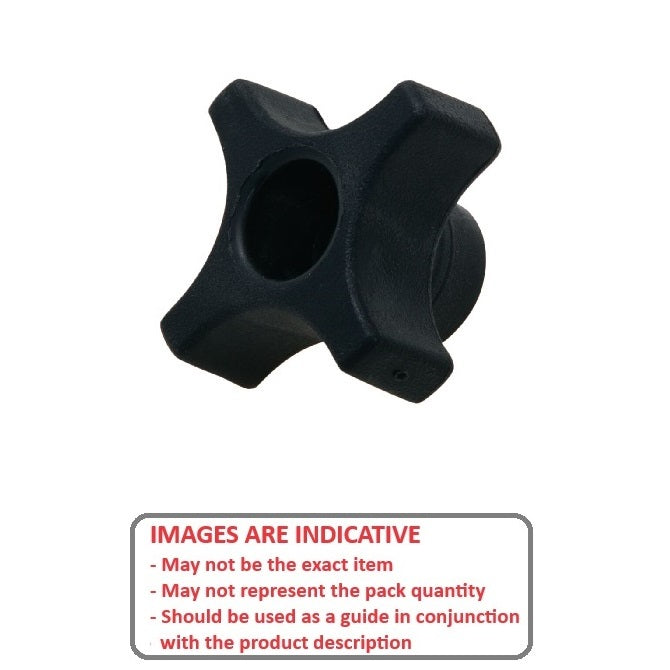

KF095C-076-CHDiagramKF095C-076-CHImage
