KF095C-069-6L-ST - Datasheet
MBA
Category Information

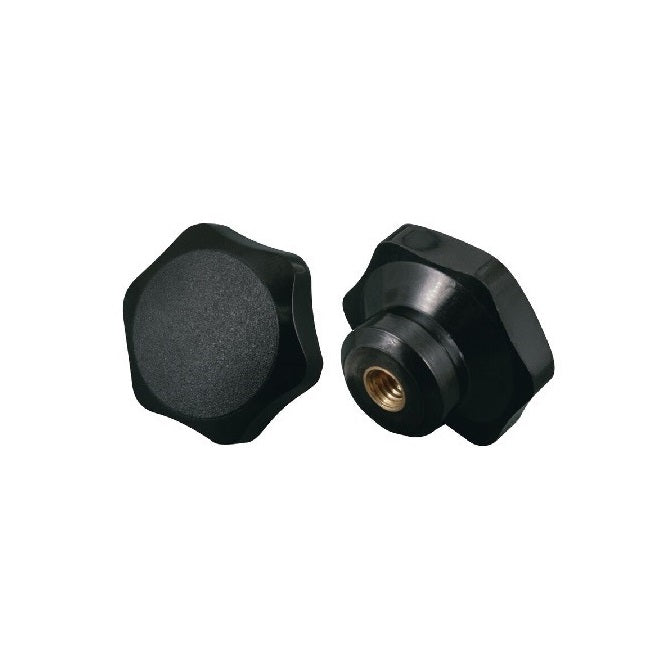

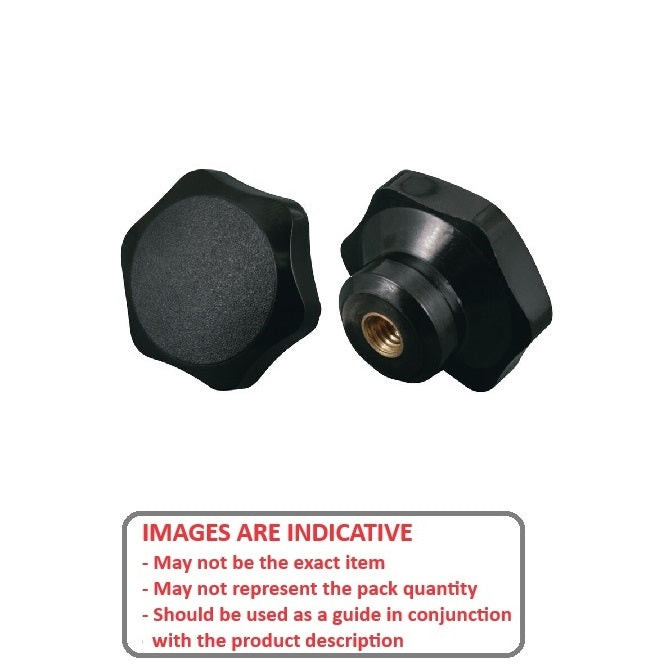

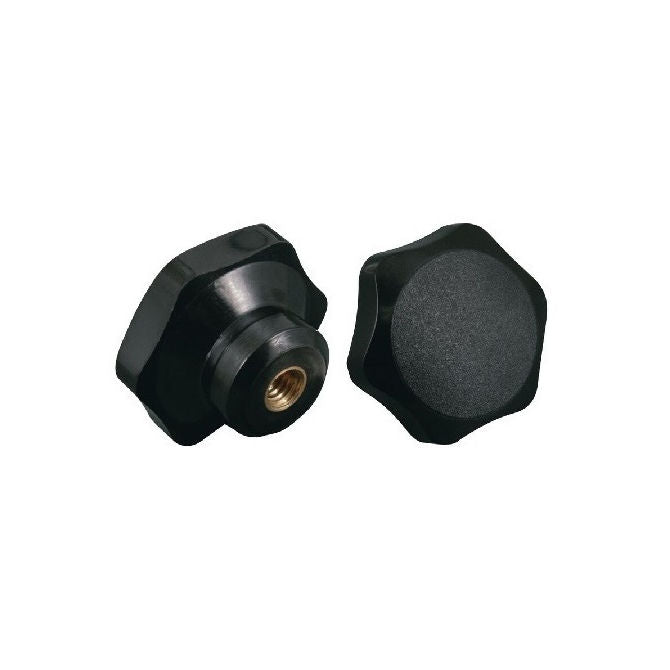

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

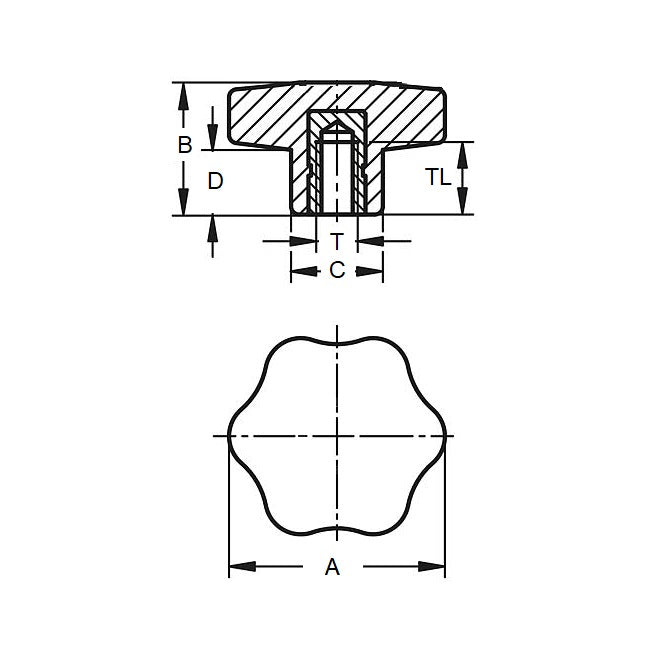

- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A)
69.09
mm
(Equiv. 2.72 in.) - Thread Length
24.9
mm
(Equiv. 0.98 in.) - Colour Black
- Hub Diameter (C) 29.97 mm
- Hub Length (F) 33.02 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KHN-105
- KHN105
