Miniature Bearings Australia
KF095C-064-4L-SFT - Datasheet
MBA
Category Information

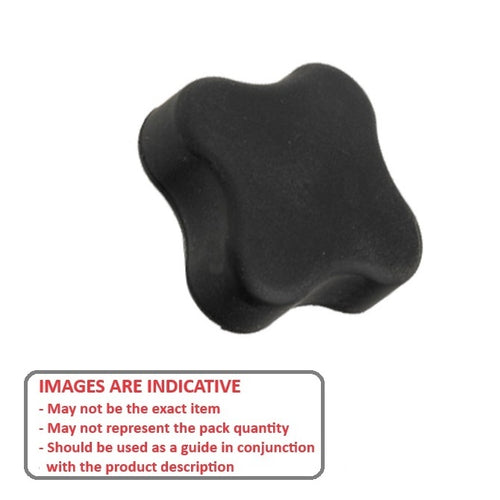

Knobs - Lobe - Four Lobe - Female - Soft TouchSoft Touch Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

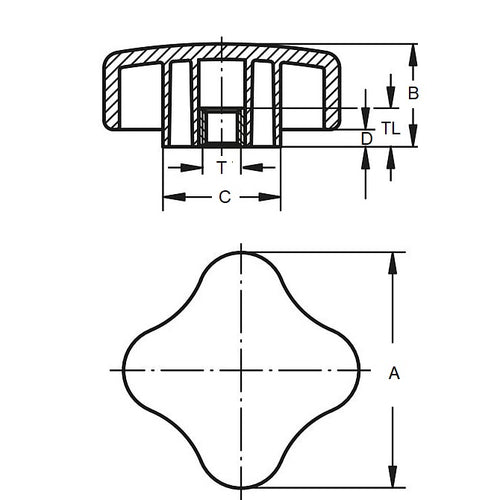

- Head Diameter (A)
63.50
mm
(Equiv. 2.5 in.) - Thread Length
12.7
mm
(Equiv. 0.5 in.) - Colour Black
- Hub Diameter (C) 31.75 mm
- Hub Length (D) 4.57 mm
- Knob Height (B) 27.69 mm
- Material Zinc Plated Brass
Product Compliance and Data
Additional Resources
Cross References
- RK-15
- RK15
