KM095C-063-5LSFT32-ST - Datasheet
MBA
Category Information

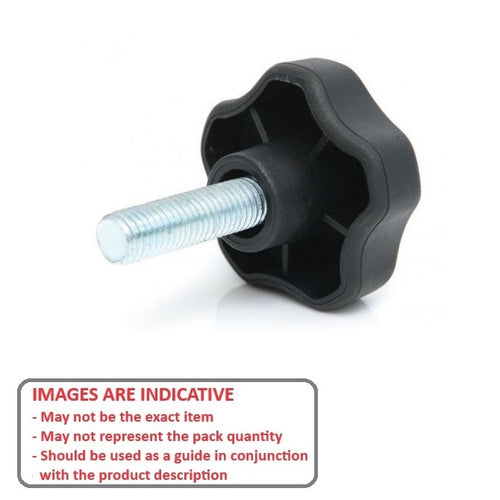

Knobs - Lobe - Five Lobe - Male - Soft TouchSoft Touch Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A) 63.00 mm
- Thread Length 31.8 mm
- Colour Black
- Hub Diameter (C) 22.10 mm
- Knob Height (B) 37.08 mm
- Material Plated Steel and Plastic
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KHY-265
- KHY265
