KF095C-063-5L-BR20 - Datasheet
MBA
Category Information

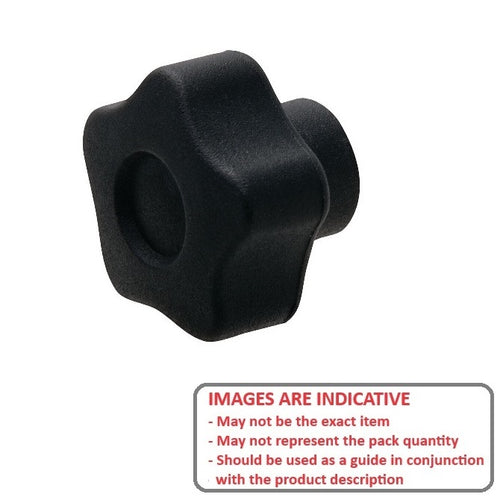

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

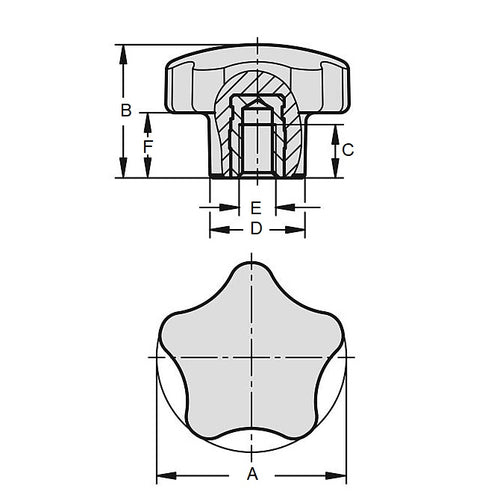

- Head Diameter (A) 62.99 mm
- Thread Length 20.1 mm
- Colour Black
- Hub Diameter (C) 22.10 mm
- Knob Height (B) 37.08 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KHY-155
- KHY155
