KF095C-063-3L - Datasheet
MBA
Category Information
Knobs - Lobe - Three Lobe - Female - StandardStandard Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

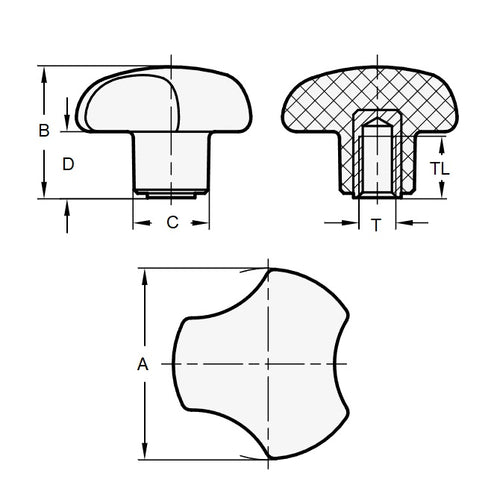

- Head Diameter (A)
62.99
mm
(Equiv. 2.48 in.) - Thread Length
14.0
mm
(Equiv. 0.551 in.) - Colour Black
- Hub Diameter (C) 23.11 mm
- Hub Length (D) 11.94 mm
- Length (B) 39.12 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST119
- RST-119
