KM095C-060-CS35 - Datasheet

MBA

Category Information

Knobs - Cross - Male

Male Cross Knobs. Black Plastic Knob with thread.

  • 4 Prong cross knobs with threads.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 59.94 mm
  • Thread Length 35.1 mm
  • Knob Length (C) 14.99 mm
  • Hub Diameter (E) 24.13 mm
  • Hub Length (D) 33.02 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-137
  • JCL137
View full details

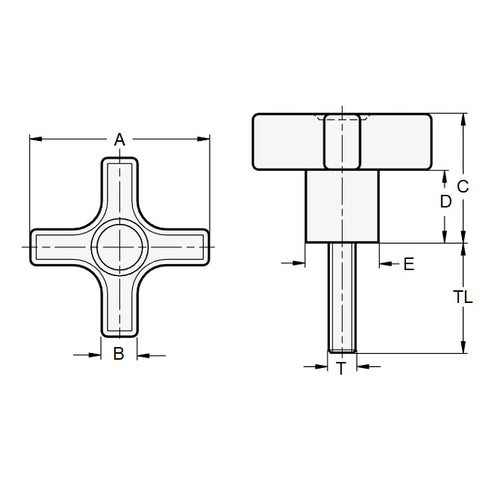

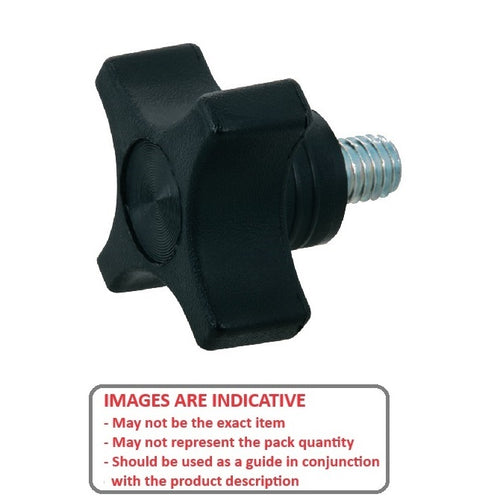

KM095C-060-CS35DiagramKM095C-060-CS35Image
