KM095C-060-CS25 - Datasheet

MBA

Product Data

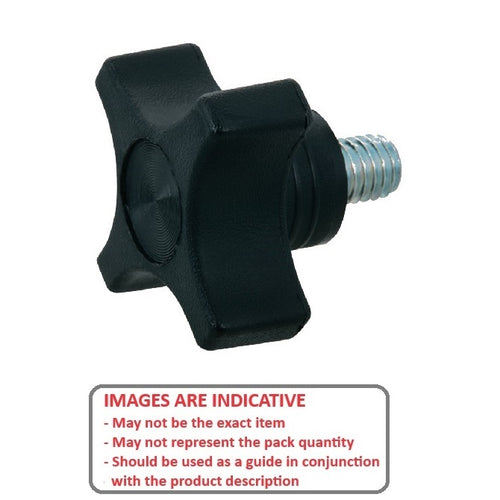

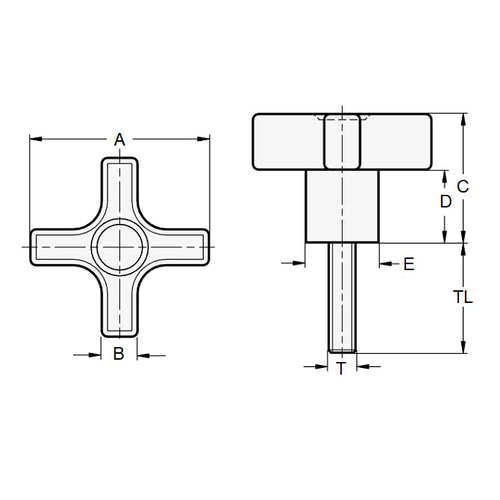

• Thread Size : 3/8-16 UNC (9.53mm)
• Head Diameter (A) 59.94 mm
  (Equiv. 2.36 in.)
• Thread Length 24.9 mm
  (Equiv. 0.98 in.)
• Knob Length (C) 14.99 mm
• Hub Diameter (E) 24.13 mm
• Hub Length (D) 33.02 mm
• Material Plated Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• JCL-136
• JCL136
