KF095C-060-4L-P - Datasheet
MBA
Category Information

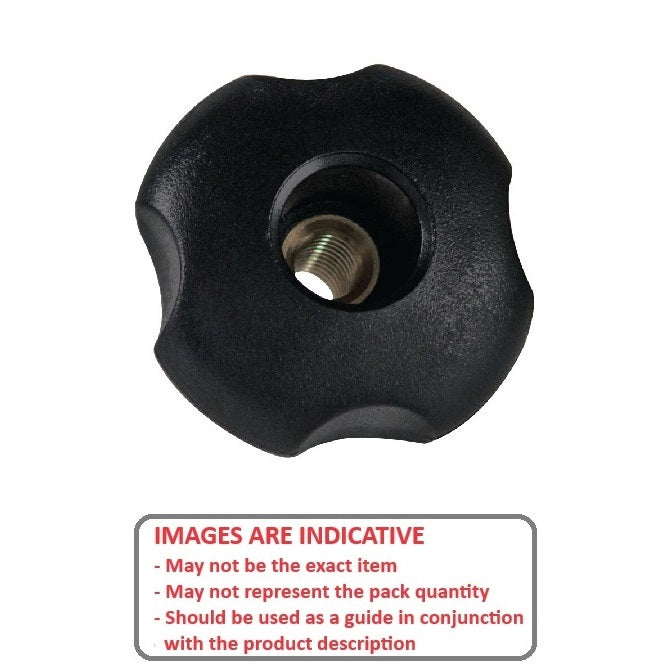

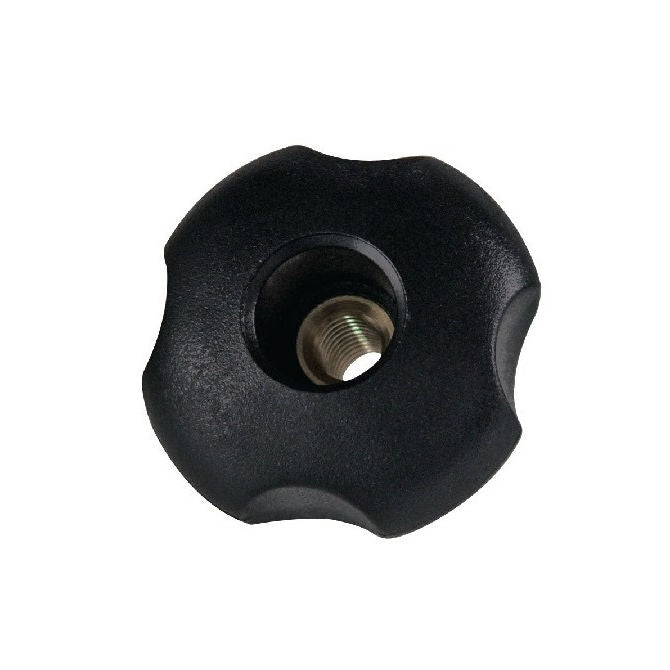

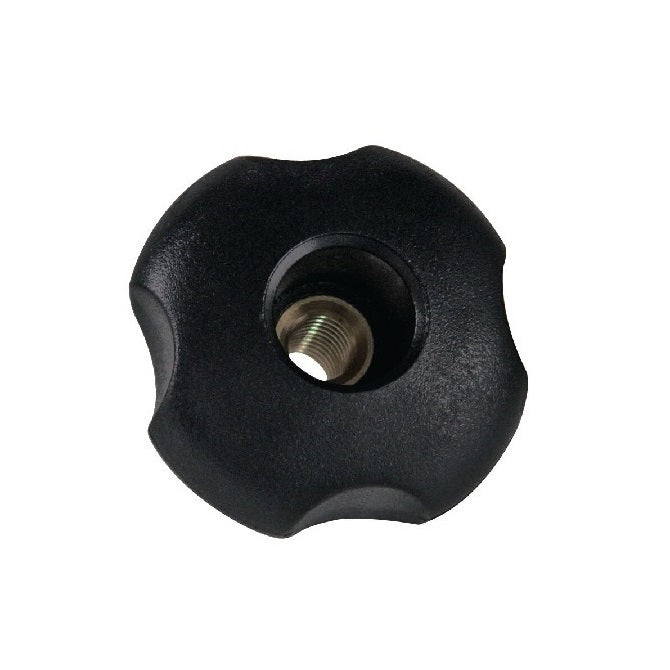

Knobs - Lobe - Four Lobe - Female - Through HoleThrough Hole Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

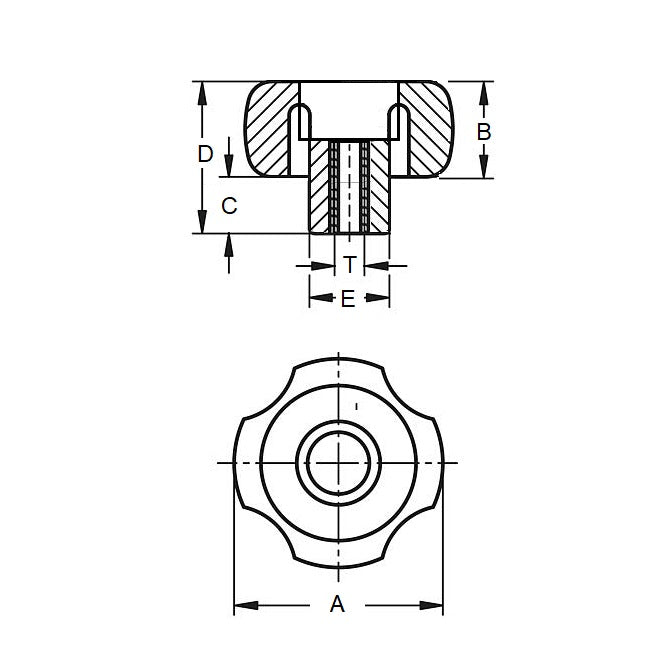

- Head Diameter (A)
59.94
mm
(Equiv. 2.36 in.) - Thread Length
14.2
mm
(Equiv. 0.559 in.) - Colour Black
- Hub Diameter (E) 23.11 mm
- Hub Length (C) 13.97 mm
- Knob Height (D) 38.10 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL-170
- JCL170
