KF095C-057-5LSFT - Datasheet

MBA

Category Information

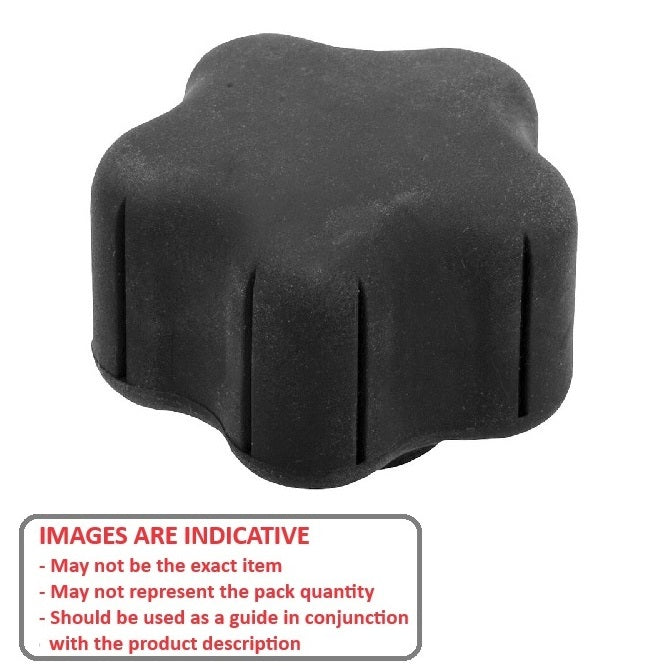

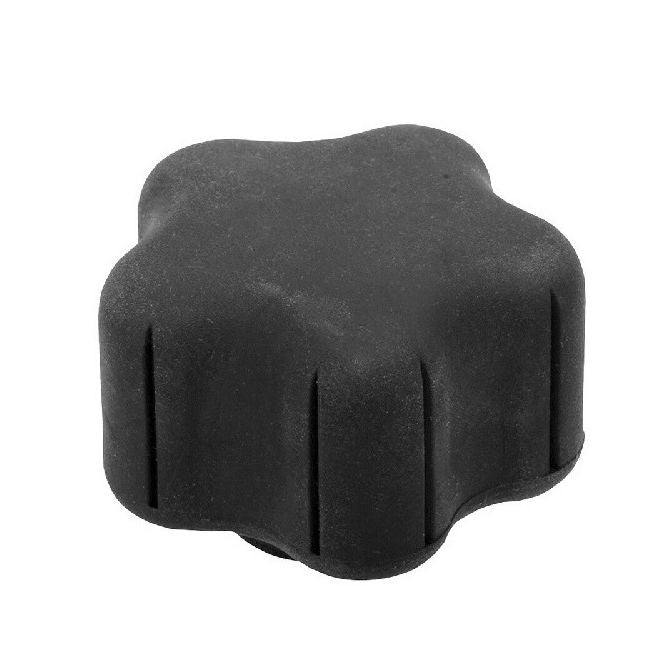

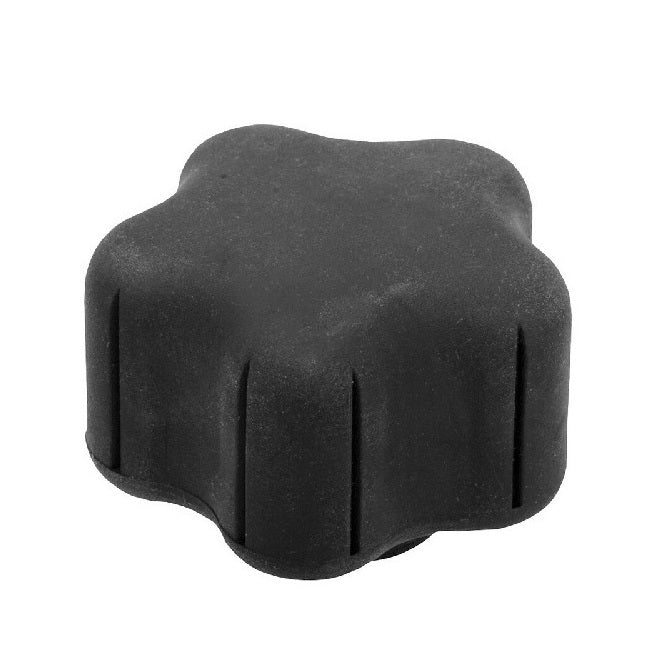

Knobs - Lobe - Five Lobe - Female - Soft Touch - Standard

Standard Soft Touch Female Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 57.40 mm
  • Thread Length 12.7 mm
  • Colour Black
  • Hub Diameter (C) 31.75 mm
  • Hub Length (D) 4.06 mm
  • Knob Height (B) 27.69 mm
  • Material Plated Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 61125K13
  • Reid Tool® RK-65
  • RK65
