KM095C-057-CS-PH64 - Datasheet

MBA

Product Data

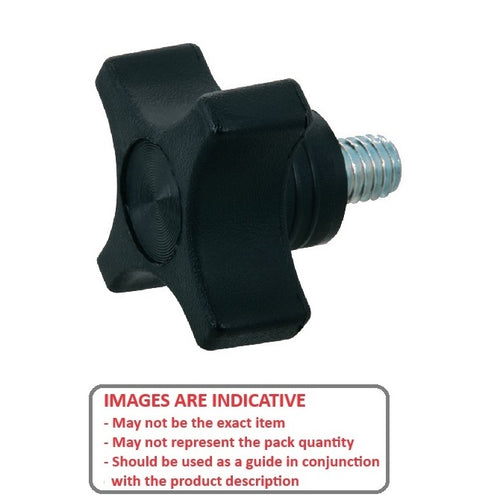

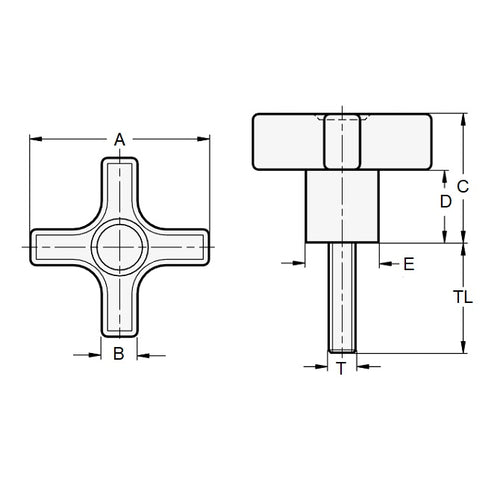

• Thread Size : 3/8-16 UNC (9.53mm)
• Head Diameter (A) 57.15 mm
  (Equiv. 2.25 in.)
• Thread Length 63.5 mm
  (Equiv. 2.5 in.)
• Knob Length (C) 28.58 mm
• Hub Diameter (E) 25.40 mm
• Hub Length (D) 14.29 mm
• Material Plated Steel
