KM095C-057-5L-SFT38-ST - Datasheet
MBA
Category Information

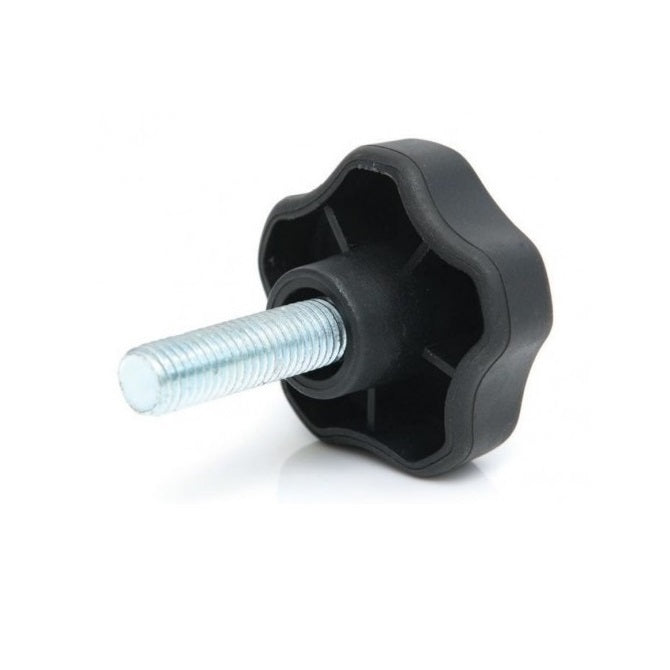

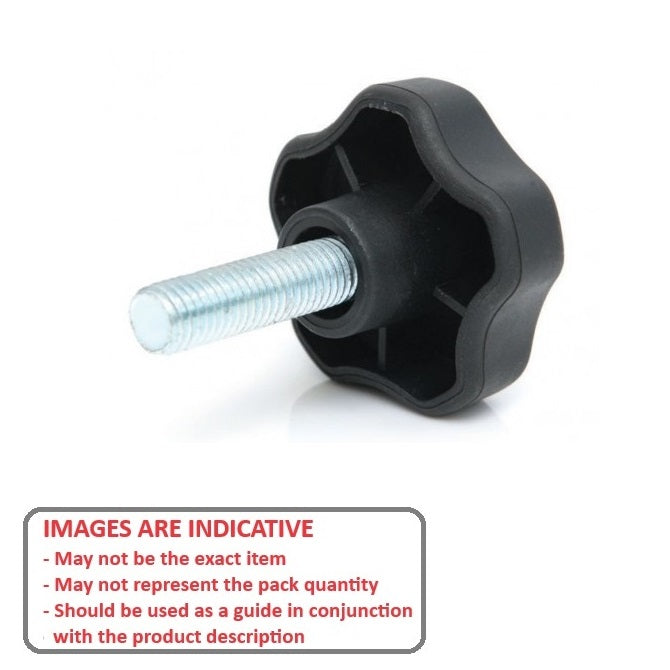

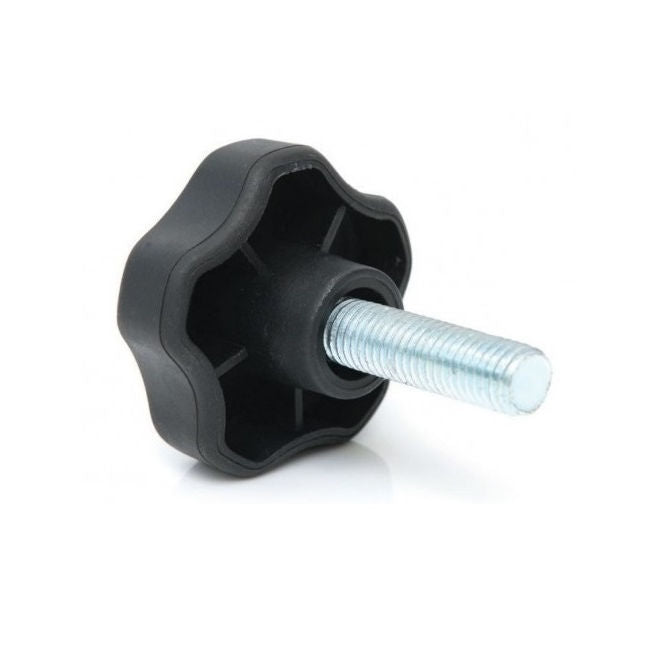

Knobs - Lobe - Five Lobe - Male - Soft TouchSoft Touch Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A)
57.15
mm
(Equiv. 2.25 in.) - Thread Length
38.1
mm
(Equiv. 1.5 in.) - Colour Black
- Hub Diameter (C) 31.75 mm
- Hub Length (D) 4.06 mm
- Knob Height (B) 27.69 mm
- Material Plated Steel and Plastic
Product Compliance and Data
Additional Resources
Cross References
- 61125K67
- RK85
- RK-85
