KM095C-057-CS-NY38 - Datasheet

MBA

Product Data

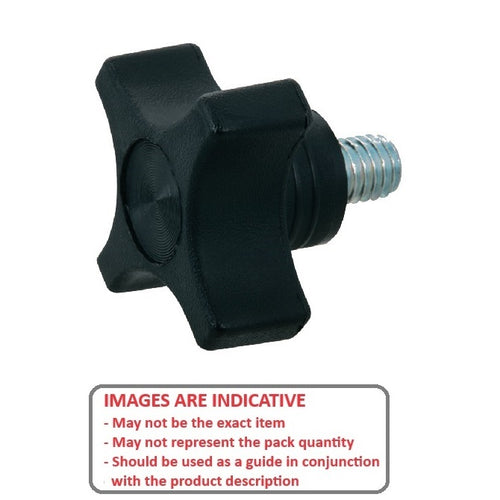

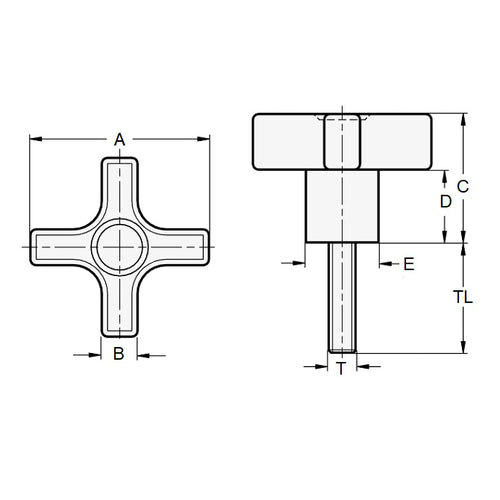

• Thread Size : 3/8-16 UNC (9.53mm)
• Head Diameter (A) 57.15 mm
  (Equiv. 2.25 in.)
• Thread Length 38.1 mm
  (Equiv. 1.5 in.)
• Knob Length (C) 25.40 mm
• Hub Diameter (E) 25.40 mm
• Hub Length (D) 11.11 mm
• Material Plated Steel
