KF095C-057-5L-PA - Datasheet
MBA
Category Information

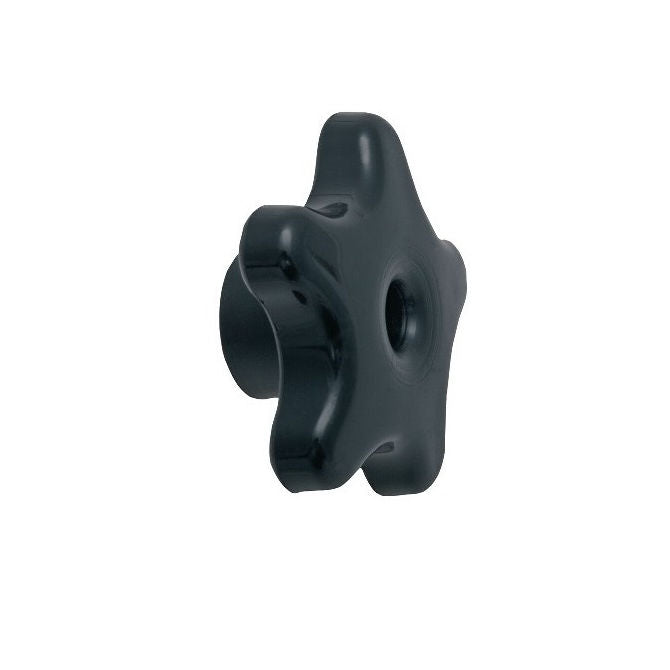

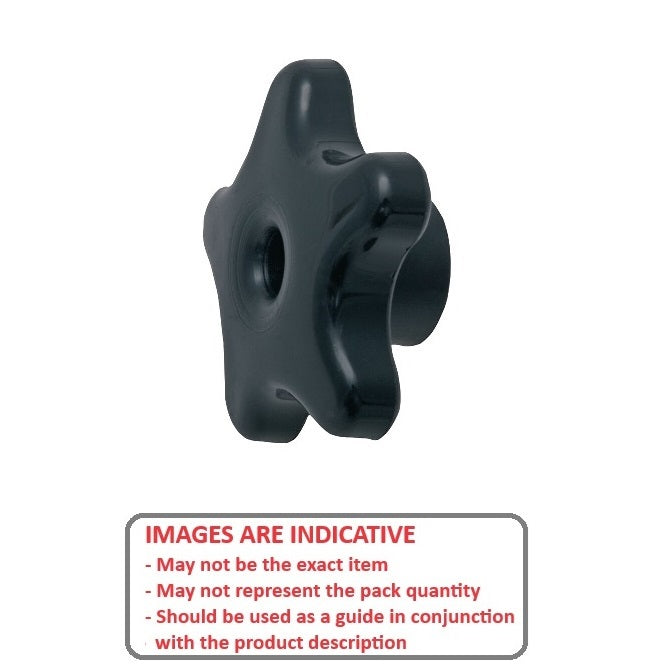

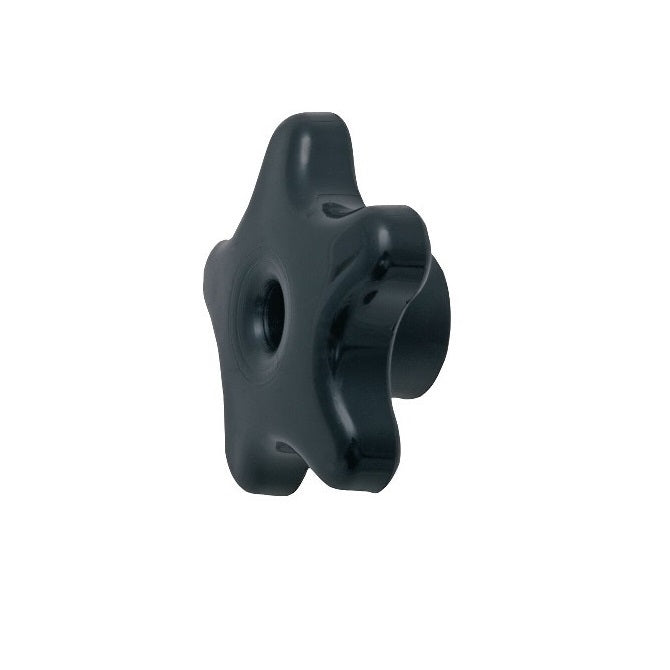

Knobs - Lobe - Five Lobe - Female - Through HoleThrough Hole Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

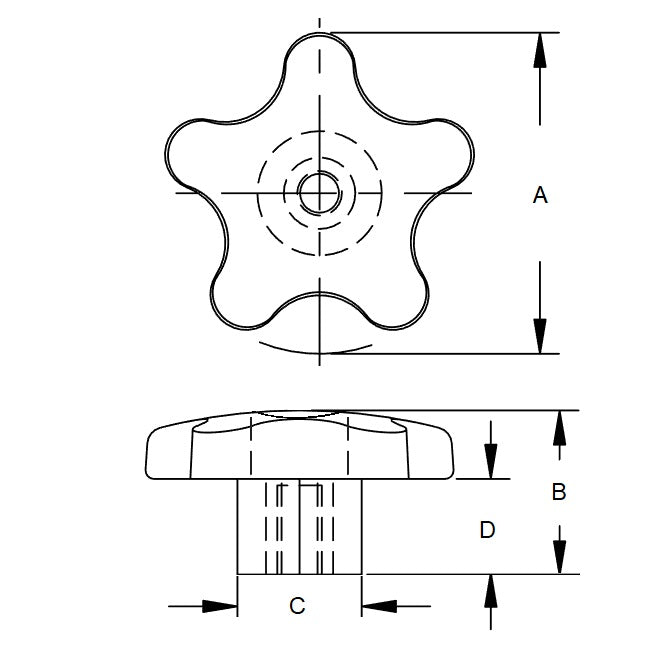

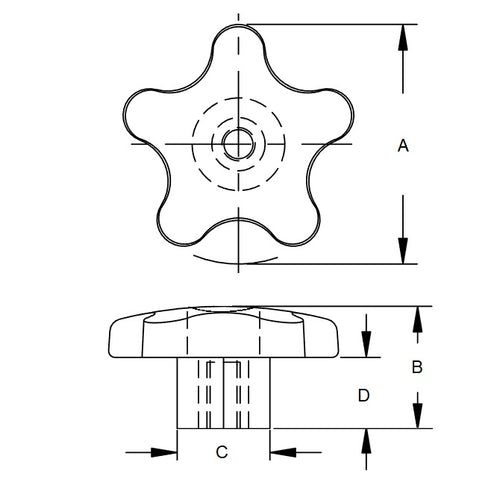

- Head Diameter (A)
57.15
mm
(Equiv. 2.25 in.) - Thread Length
25.4
mm
(Equiv. 1 in.) - Colour Black
- Hub Diameter (C) 22.23 mm
- Hub Length (D) 12.70 mm
- Knob Height (B) 25.40 mm
- Material Steel with Knob Lock
Product Compliance and Data
Additional Resources
Cross References
- KLK-80
- KLK80
