KF095C-057-CB - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 57.15 mm
    (Equiv. 2.25 in.)
  • Thread Length 12.7 mm
    (Equiv. 0.5 in.)
  • Colour Black
  • Hub Diameter (E) 25.40 mm
  • Hub Length (D) 11.11 mm
  • Knob Height (C) 25.40
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 5993K78
  • DK1192
  • DK-1192
View full details

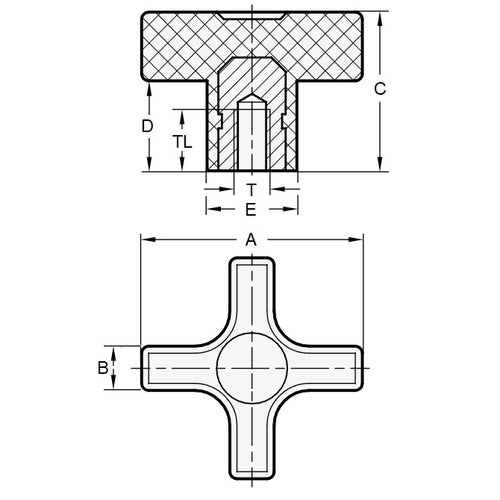

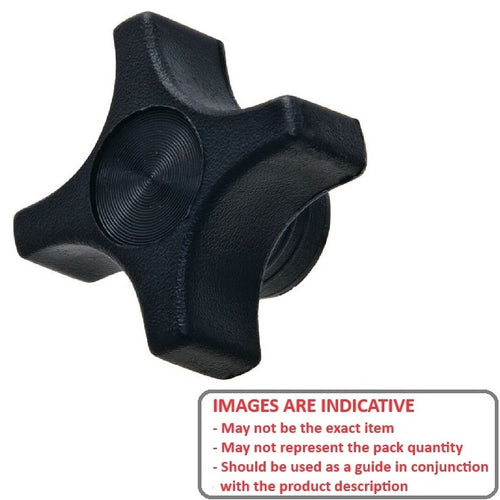

KF095C-057-CBDiagramKF095C-057-CBImage
