KF095C-055-3L-SFT - Datasheet
MBA
Category Information

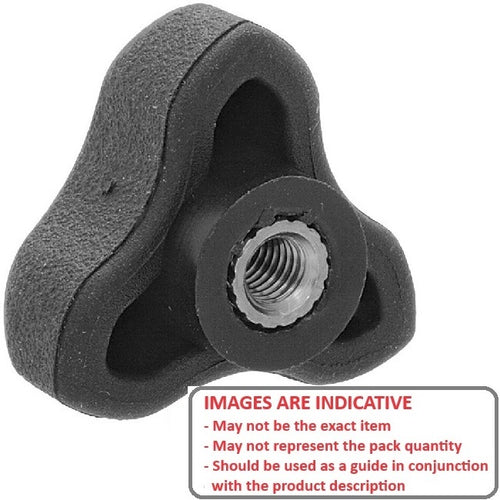

Knobs - Lobe - Three Lobe - Female - Soft TouchSoft Touch Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

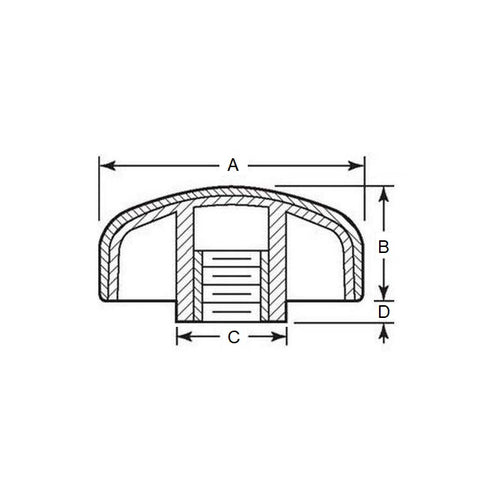

- Head Diameter (A)
55.12
mm
(Equiv. 2.17 in.) - Thread Length
22.9
mm
(Equiv. 0.902 in.) - Colour Black
- Hub Diameter (C) 20.57 mm
- Hub Length (D) 3.81 mm
- Knob Height (B) 27.43 mm
- Material Zinc Plated Brass
Product Compliance and Data
Additional Resources
Cross References
- 2276K9
- RK323
- RK-323
