KF095C-052-MRPH12 - Datasheet
MBA
Category Information

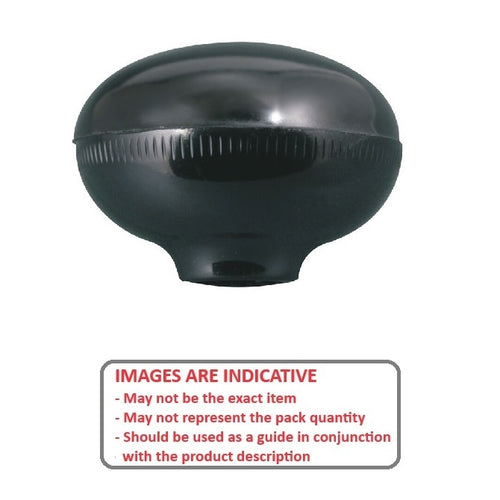

Knobs - Mushroom - Round - Female - PhenolicPhenolic Female Round Mushroom Knobs. This is the main category in this series
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

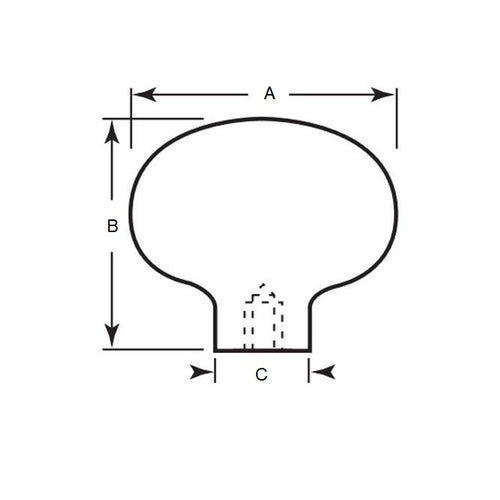

- Head Diameter (A)
51.60
mm
(Equiv. 2.031 in.) - Height (B)
38.1
mm
(Equiv. 1.5 in.) - Thread Type Plastic
- Shank Diameter (C) 19.05 mm
- Thread Depth 12.7 mm
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- MPB2
- MPB-2
