KF095C-050-5LSFT-P - Datasheet
MBA
Category Information

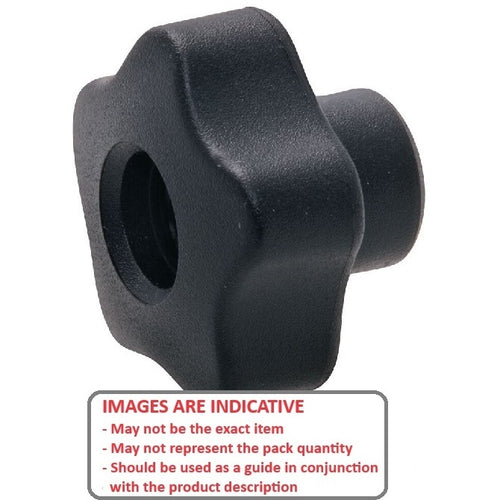

Knobs - Lobe - Five Lobe - Female - Soft Touch -Through HoleSoft Touch -Through Hole Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

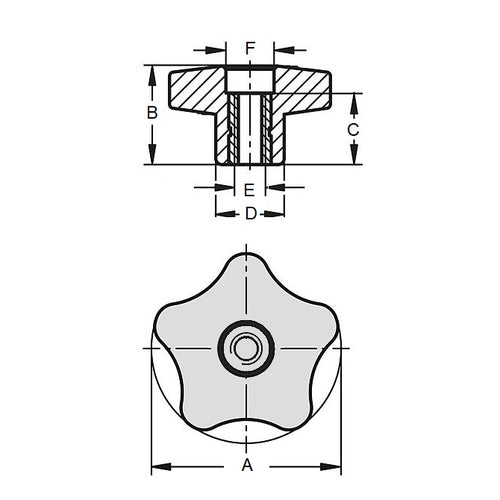

- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Hub Diameter (C) 20.07 mm
- Hub Length (D) 19.05 mm
- Knob Height (B) 32.00 mm
- Material Black Plastic
Product Compliance and Data
Additional Resources
Cross References
- KHY185
- KHY-185
