KF095C-050-NG-SS - Datasheet
MBA
Category Information

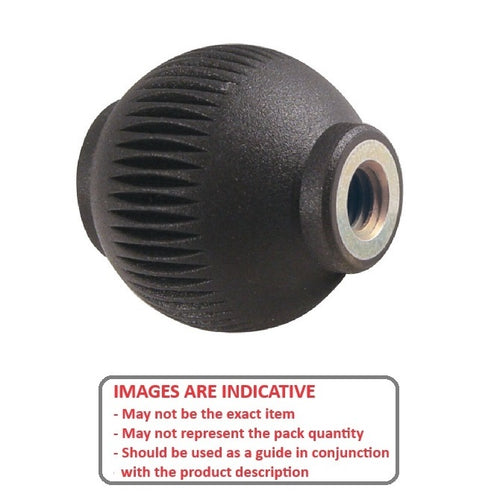

Knobs - Ball - Female Threaded - Novo-GripNovo-Grip Female Threaded Ball Knobs. Ergonomic Shape for easy gripping
- An expanded range may be available on special order. Please enquire.
- Unique styling for a very distinctive look
- Belt fluting for non-slip gripping
- Black thermoplastic with steel or stainless steel inserts
Product Data

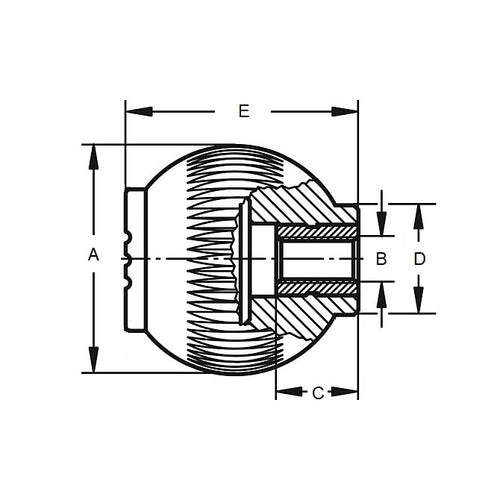

- Thread or Hole Size : 3/8-16 UNC (9.53mm)
- Diameter
50.04
mm
(Equiv. 1.97 in.) - Thread Depth (C)
50.0
mm
(Equiv. 1.969 in.) - Base Diameter (D) 23.88 mm
- Body Height (E) 50.80 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- GK440
- GK-440
