KM095C-050-CS35 - Datasheet

MBA

Product Data

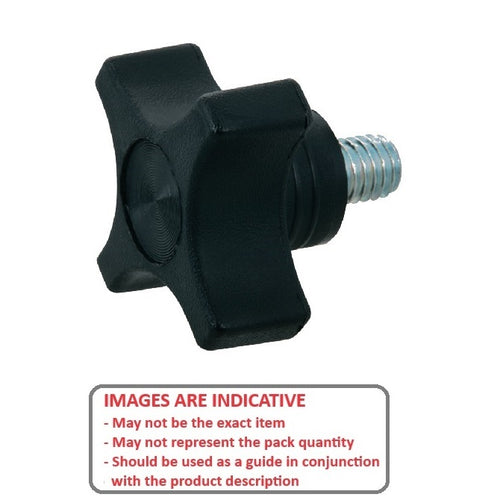

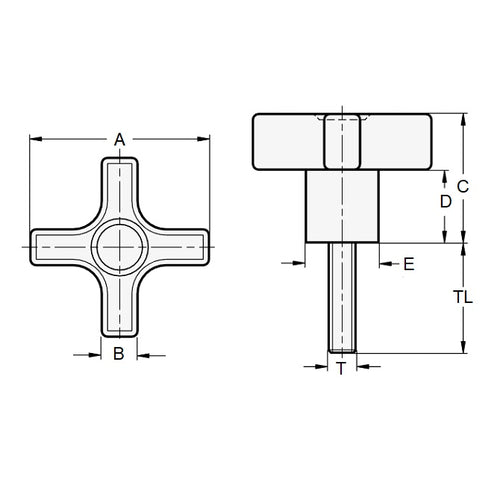

• Thread Size : 3/8-16 UNC (9.53mm)
• Head Diameter (A) 50.04 mm
  (Equiv. 1.97 in.)
• Thread Length 35.1 mm
  (Equiv. 1.382 in.)
• Knob Length (C) 13.97 mm
• Hub Diameter (E) 20.07 mm
• Hub Length (D) 28.45 mm
• Material Plated Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• JCL134
• JCL-134
