KM095C-050-3L-SAF25 - Datasheet
MBA
Category Information

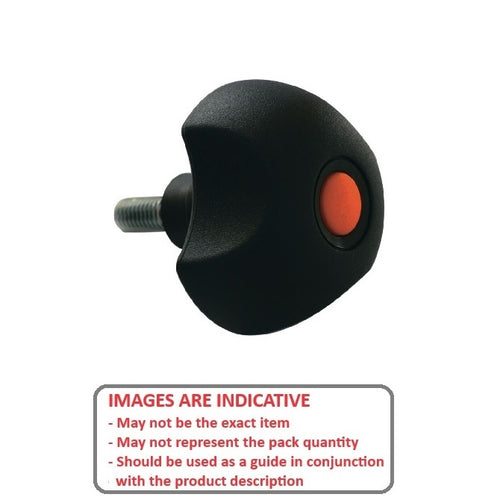

Knobs - Lobe - Three Lobe - Male - SafetySafety Male Three Lobe Lobe Knobs. Knob only turns when pressed downwards and turned simultaneously to avoid involuntary turning. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

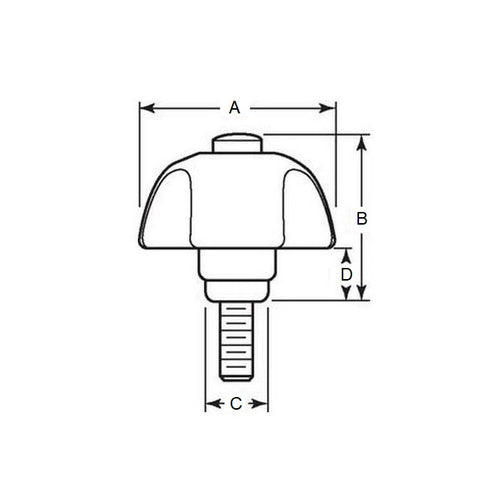

- Head Diameter (A) 50.04 mm
- Thread Length 25.4 mm
- Hub Diameter (C) 19.56 mm
- Hub Length Resting (D) 17.53 mm
- Hub Length Working (D) 13.46 mm
- Steel
- Material Plastic with Insert
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® RST-223
- RST223
