KF095C-050-5L-BR20A - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Female - Standard

Standard Female Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 50.04 mm
  • Thread Length 20.1 mm
  • Colour Black
  • Hub Diameter (C) 24.89 mm
  • Hub Length (F) 13.97 mm
  • Knob Height (B) 33.02 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® KHY-46
  • KHY46
View full details

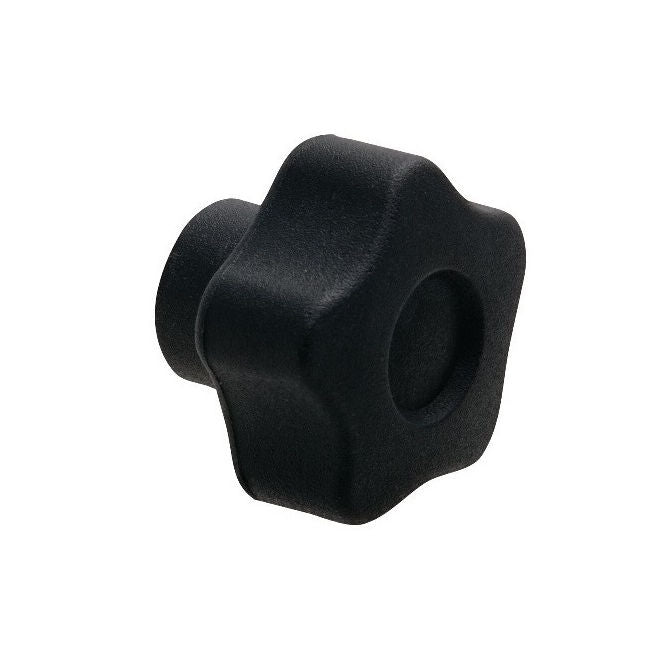

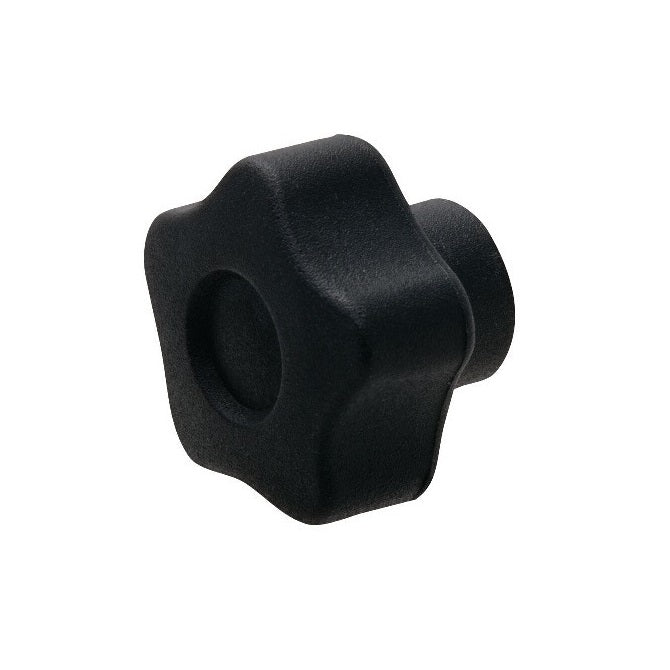

KF095C-050-5L-BR20ADiagramKF095C-050-5L-BR20AImage
