KF095C-050-6L-PSS - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Through Hole

Through Hole Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 50.04 mm
    (Equiv. 1.97 in.)
  • Thread Length 14.3 mm
    (Equiv. 0.563 in.)
  • Colour Black
  • Hub Diameter (E) 20.07 mm
  • Hub Length (C) 14.48 mm
  • Knob Height (D) 28.45 mm
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL-184
  • JCL184
View full details

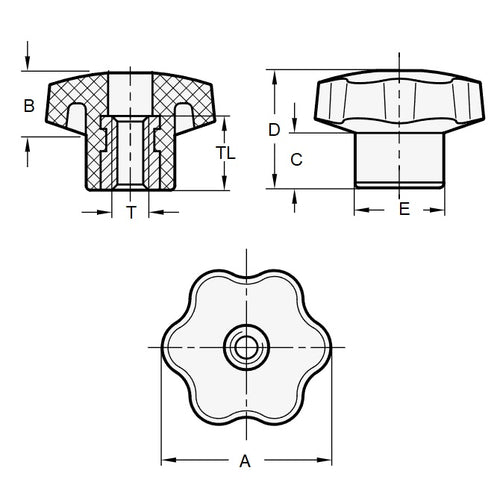

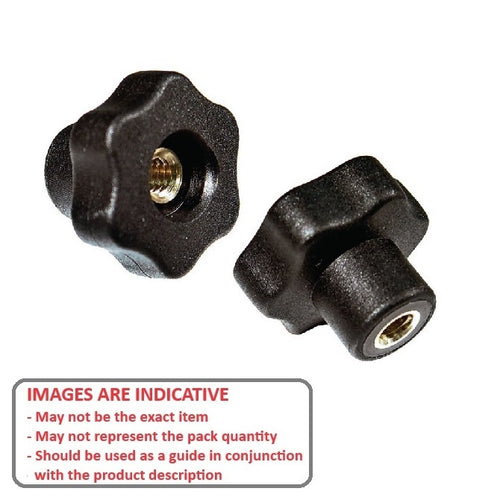

KF095C-050-6L-PSSDiagramKF095C-050-6L-PSSImage
