KF095C-050-CH-SS - Datasheet

MBA

Category Information

Knobs - Cross - Female - Through Hole

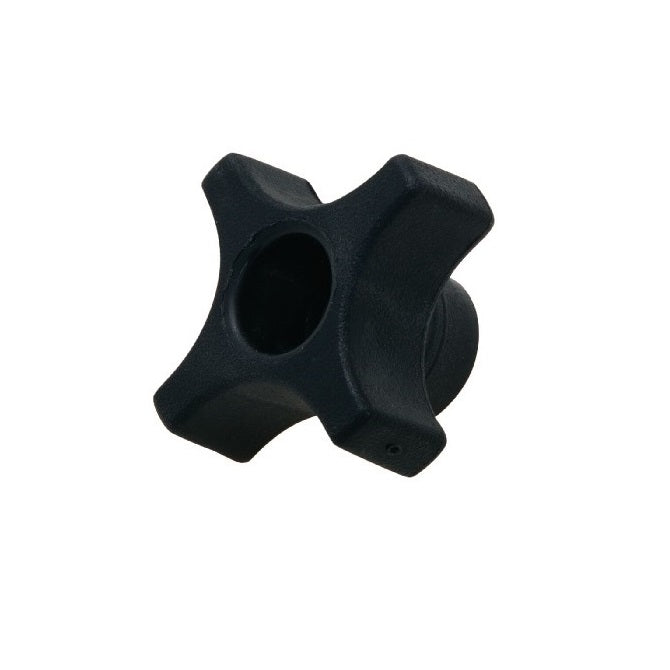

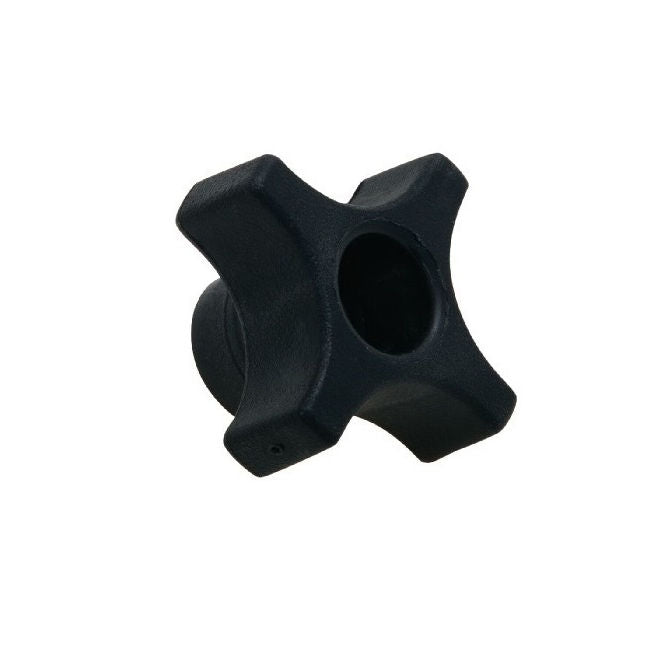

Through Hole Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads. Through Hole.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)

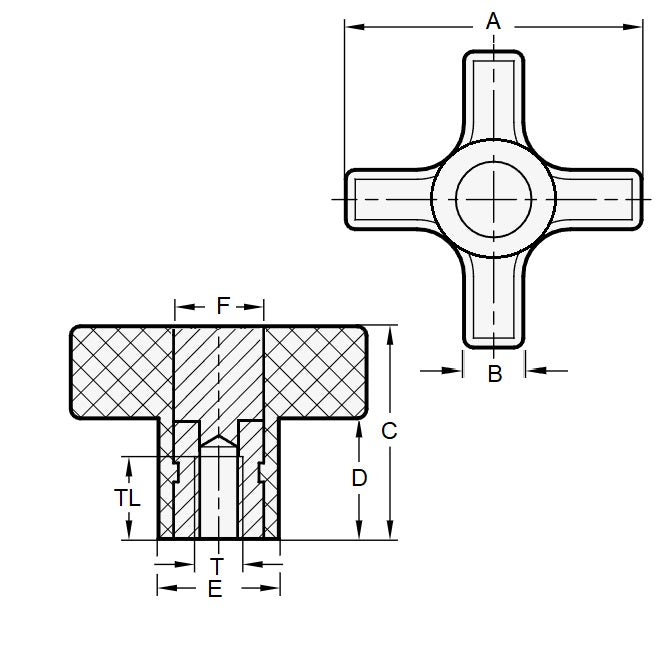

  • Head Diameter (A) 50.04 mm
    (Equiv. 1.97 in.)
  • Thread Length 14.3 mm
    (Equiv. 0.563 in.)
  • Colour Black
  • Hub Diameter (E) 20.07 mm
  • Hub Length (D) 14.48 mm
  • Knob Height (C) 28.45
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL223
  • JCL-223
