KF095C-050-4L-P - Datasheet
MBA
Category Information

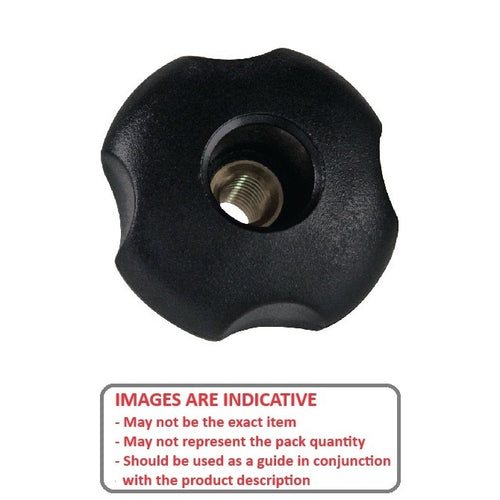

Knobs - Lobe - Four Lobe - Female - Through HoleThrough Hole Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)

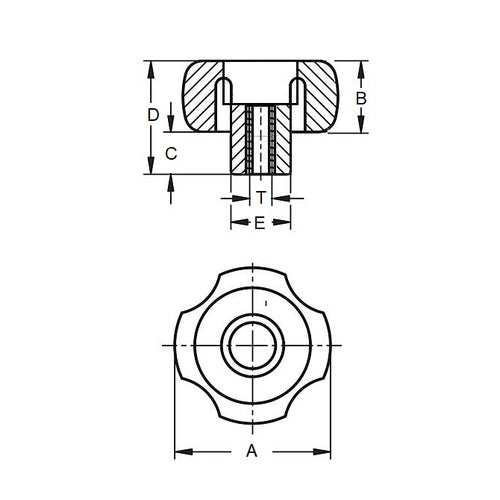

- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Thread Length
14.2
mm
(Equiv. 0.559 in.) - Colour Black
- Hub Diameter (E) 20.07 mm
- Hub Length (C) 9.91 mm
- Knob Height (D) 32.00 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL-165
- JCL165
