KF095C-050-4LA - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Standard

Standard Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 50.04 mm
    (Equiv. 1.97 in.)
  • Thread Length 14.2 mm
    (Equiv. 0.559 in.)
  • Colour Black
  • Hub Diameter (C) 20.07 mm
  • Hub Length (D) 9.91 mm
  • Knob Height (B) 32.00 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL105
  • JCL-105
View full details

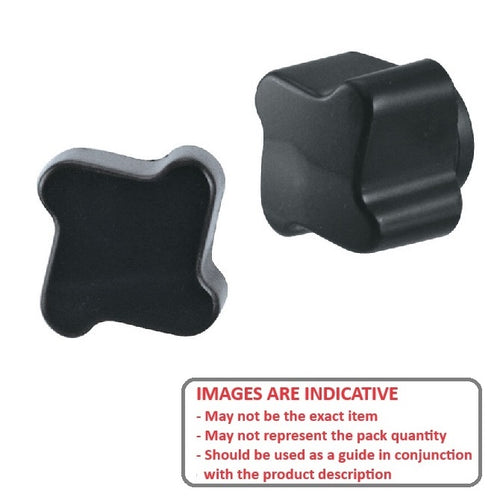

KF095C-050-4LADiagramKF095C-050-4LAImage
