KF095C-050-3L - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Female - Standard

Standard Female Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 50.04 mm
    (Equiv. 1.97 in.)
  • Thread Length 14.0 mm
    (Equiv. 0.551 in.)
  • Colour Black
  • Hub Diameter (C) 21.08 mm
  • Hub Length (D) 8.89 mm
  • Length (B) 30.99 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST-118
View full details

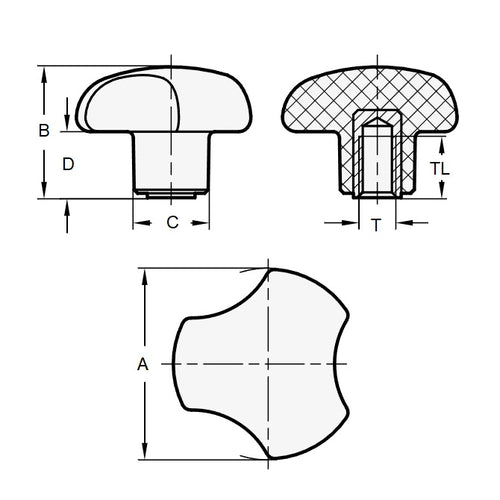

KF095C-050-3LDiagramKF095C-050-3LImage
