KF095C-050-4LB - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Standard

Standard Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 50.04 mm
  • Thread Length 14.0 mm
  • Colour Black
  • Hub Diameter (C) 23.11 mm
  • Hub Length (D) 6.35 mm
  • Knob Height (B) 32.00 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® RST-79
  • RST79
View full details

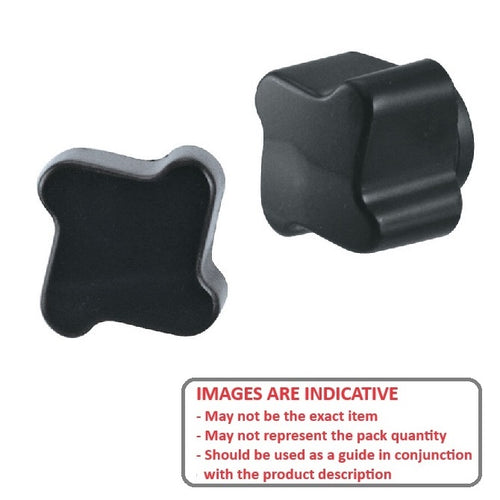

KF095C-050-4LBDiagramKF095C-050-4LBImage
