Miniature Bearings Australia
KM095C-050-5L51-S4 - Datasheet
MBA
Category Information

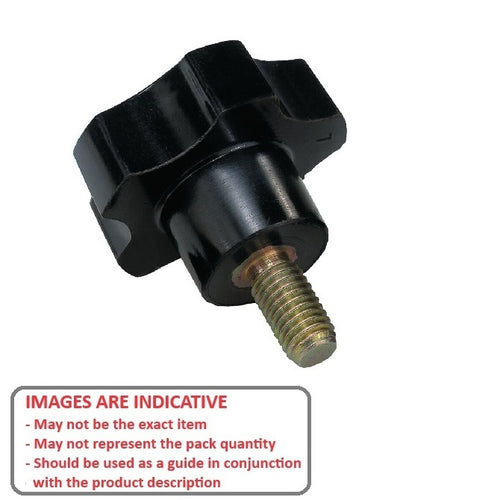

Knobs - Lobe - Five Lobe - Male - StandardStandard Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A)
50.00
mm
(Equiv. 1.969 in.) - Thread Length
50.8
mm
(Equiv. 2 in.) - Colour Black
- Hub Diameter (C) 24.89 mm
- Hub Length (D) 13.97 mm
- Knob Height (B) 33.02 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- KHY-445
- KHY445
