Miniature Bearings Australia
KM095C-050-7L40-ST - Datasheet
MBA
Category Information

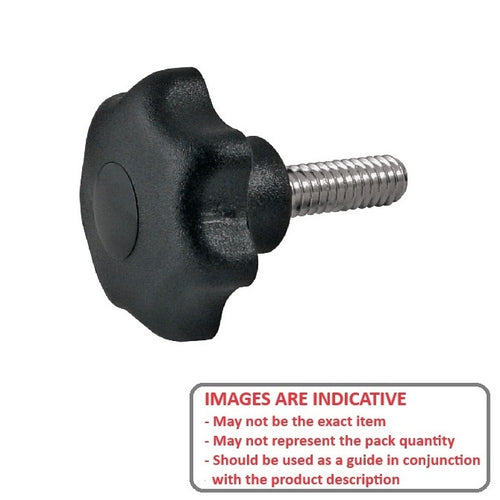

Knobs - Lobe - Seven Lobe - Male - StandardStandard Male Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

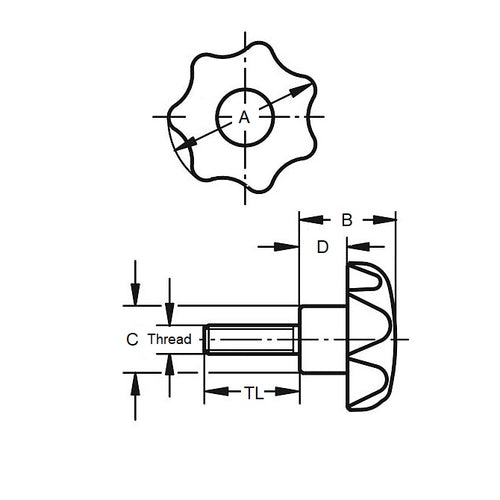

- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A) 50.00 mm
- Thread Length 40.0 mm
- Colour Black
- Hub Diameter (C) 22.10 mm
- Hub Length (D) 17.02 mm
- Knob Height (B) 32.00 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- KaVo® KBP-275
- KBP275
