KM095C-050-5L20-ST - Datasheet
MBA
Category Information

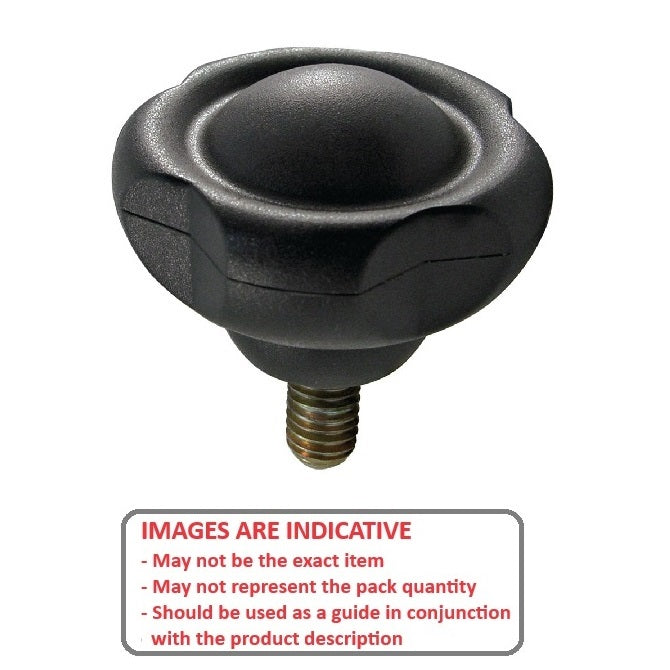

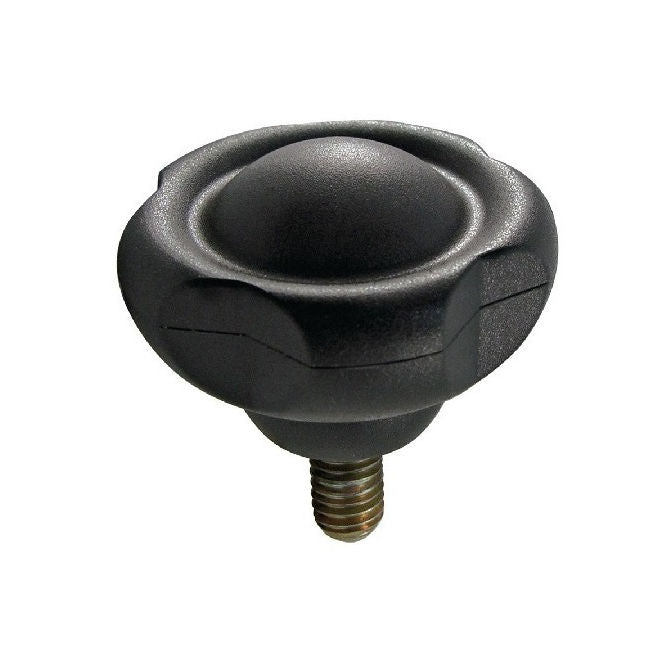

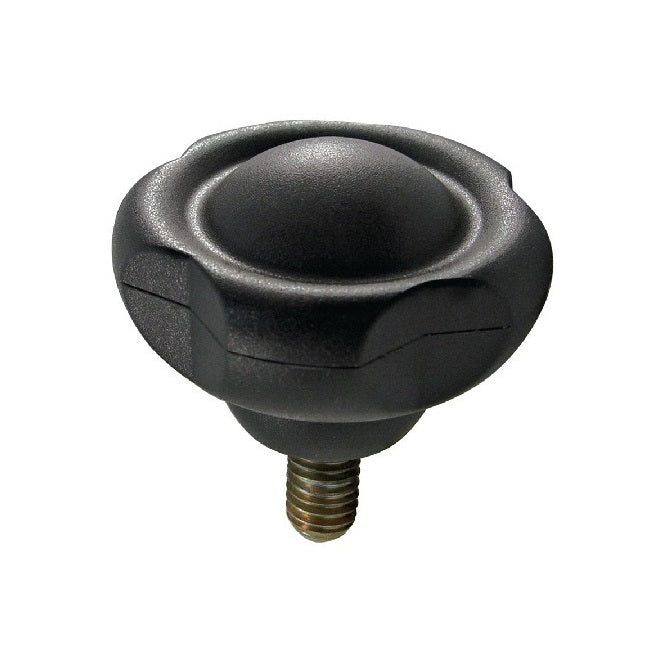

Knobs - Lobe - Five Lobe - Male - ThermoplasticThermoplastic Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 3/8-16 UNC (9.53mm)
- Head Diameter (A)
50.00
mm
(Equiv. 1.969 in.) - Thread Length
20.0
mm
(Equiv. 0.787 in.) - Colour Black
- Hub Diameter (C) 28.19 mm
- Hub Length (D) 11.43 mm
- Knob Height (B) 34.80 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP337
- KBP-337
