KM095C-044-CS-PH25 - Datasheet

MBA

Product Data

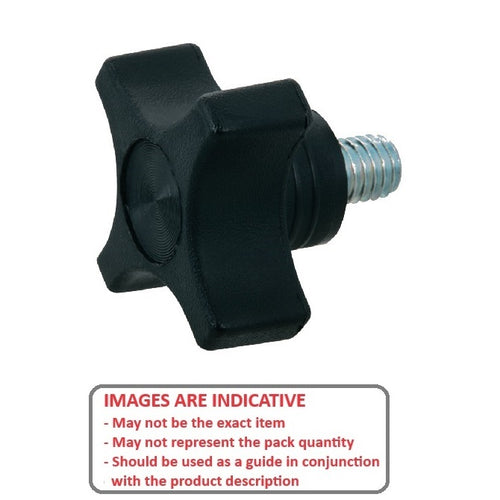

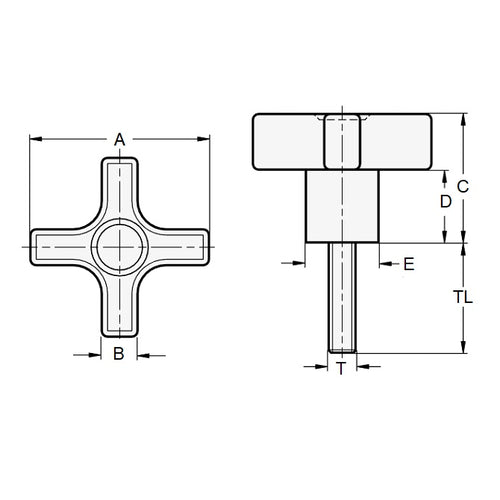

• Thread Size : 3/8-16 UNC (9.53mm)
• Head Diameter (A) 44.45 mm
  (Equiv. 1.75 in.)
• Thread Length 25.4 mm
  (Equiv. 1 in.)
• Knob Length (C) 25.40 mm
• Hub Diameter (E) 20.64 mm
• Hub Length (D) 12.70 mm
• Material Plated Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• DK690
• DK-690
