Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

KF095C-044-CBL - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 44.45 mm
  • Thread Length 12.7 mm
  • Colour Black
  • Hub Diameter (E) 20.64 mm
  • Hub Length (D) 12.70 mm
  • Knob Height (C) 25.40
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® DK-62
  • DK62
View full details

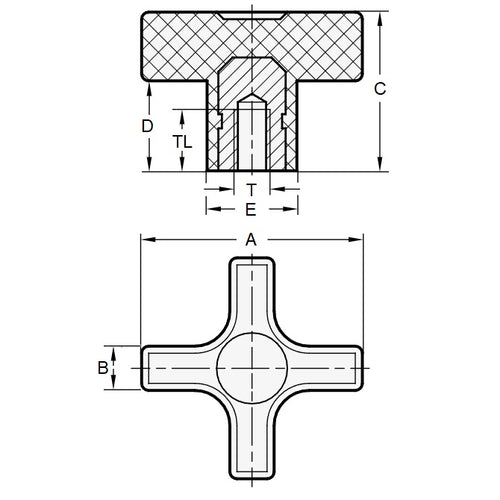

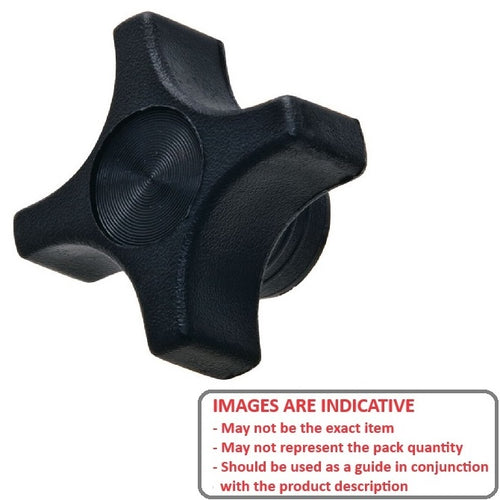

KF095C-044-CBLDiagramKF095C-044-CBLImage
