KM095C-044-6L44-SP - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Male

Male Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Head Diameter (A) 43.94 mm
    (Equiv. 1.73 in.)
  • Thread Length 44.5 mm
    (Equiv. 1.752 in.)
  • Colour Black
  • Hub Diameter (C) 23.11 mm
  • Hub Length (D) 9.91 mm
  • Knob Height (B) 26.92 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST68
  • RST-68
View full details

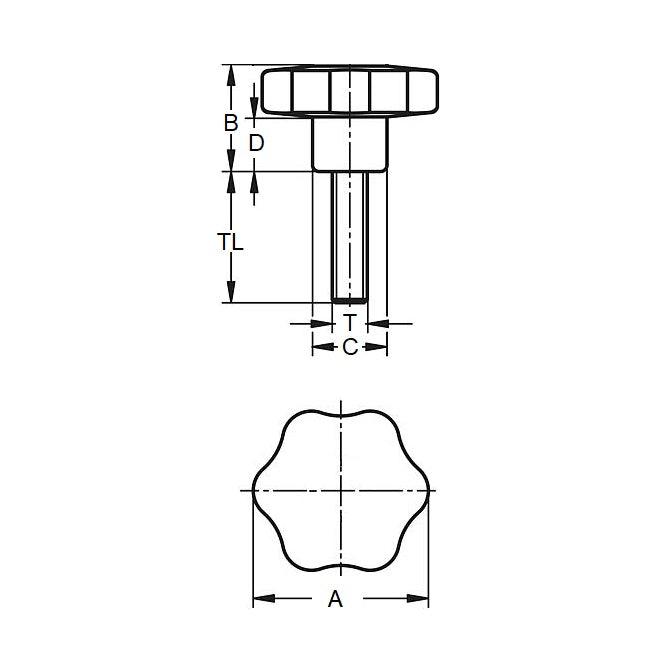

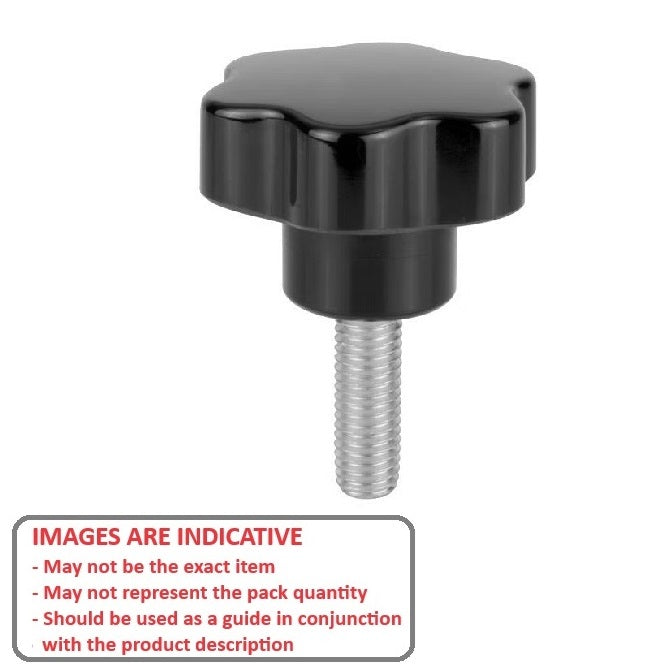

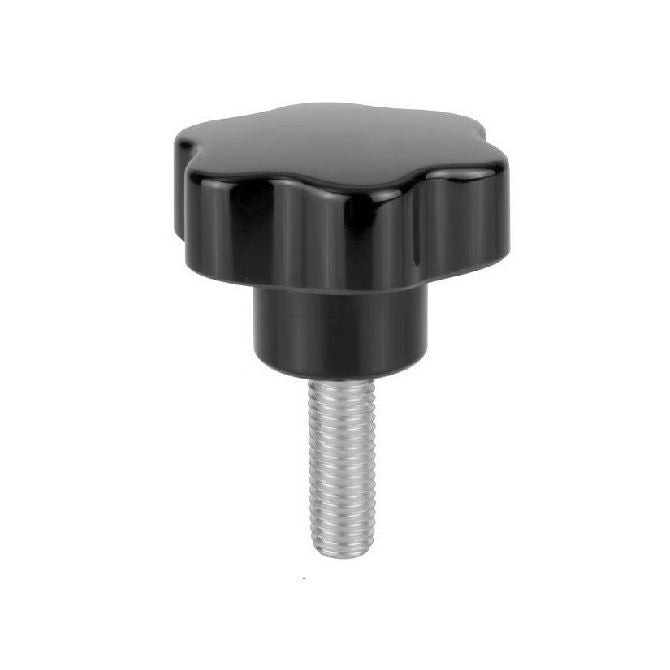

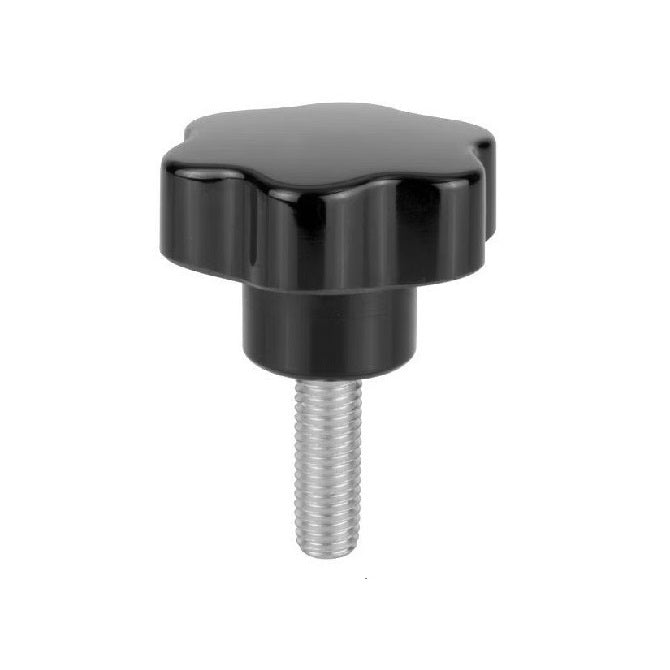

KM095C-044-6L44-SPDiagramKM095C-044-6L44-SPImage
