KF095C-044-TPHS - Datasheet
MBA
Category Information

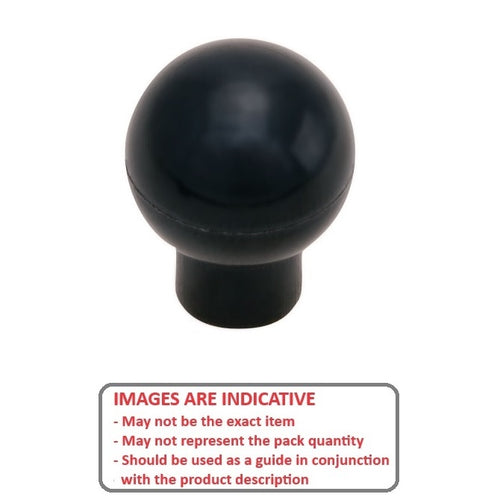

Knobs - Ball - Female Threaded - Phenolic - Shank TypeShank Type Phenolic Female Threaded Ball Knobs. Moulded from black phenolic resin.
- An expanded range may be available on special order. Please enquire.
- Phenolic Ball Knobs with Shanks. To Screw onto threads.
Product Data
- Thread or Hole Size : 3/8-16 UNC (9.53mm)
- Diameter
43.66
mm
(Equiv. 1.719 in.) - Thread Type Brass

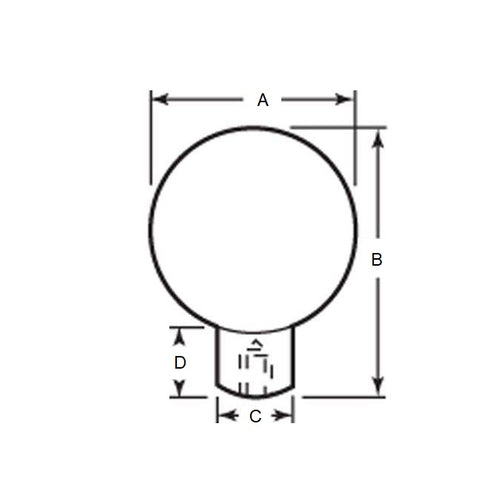

- Shank Height (D) 12.70
- Shank Diameter (C) 19.84 mm
- Height (B) 28.58 mm
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- DK-380
- DK380
