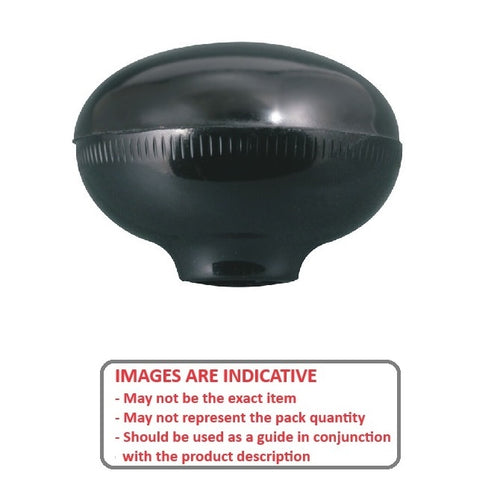

KF095C-041-MOPH - Datasheet

MBA

Product Data

• Thread Size : 3/8-16 UNC (9.53mm)

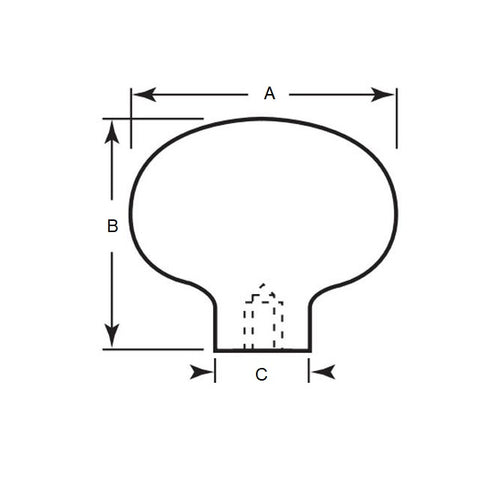

• Diameter Small x Large (A) 41.28 x 55.96 mm
  (Equiv. 1.625 in.)
• Height (B) 46.4 mm
  (Equiv. 1.827 in.)
• Thread Type Brass
• Shank Diameter (C) 17.86 mm
• Thread Depth 12.70 mm
• Material Phenolic

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• DK67
• DK-67
